Casetofon deck AKAI GX75

Rog insistent toti cumparatorii care doar plaseaza comenzi  pentru a ma intreba diverse lucruri care au ceva mai mult sau mai putin legat de produs, sa-si formuleze intrebarile pe mesagerie. Raspund foarte prompt

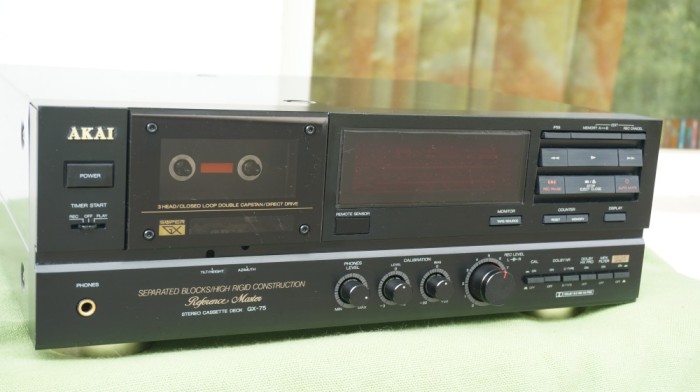

Vand un casetofon deck AKAI model GX75 in stare tehnica deosebit de buna, la fel si din punct de vedere estetic. Recent i-au fost inlocuite curelele de transmisie precum si rola IDLER. Inregistreaza fara pierdere orice tip de caseta.

General

Manufacturer: Akai
Model: GX-75
Type: Cassette Tape Deck
Years of manufacture: 1988 - 1990
Made in: Japan
Color: Black
Remote control: optional (RC-G95)
Dimensions: 425 x 154 x 350 mm (WxHxD)
Weight: 9.2 kg
Original price approx.: DM 999,- (€ 500,-)


Connections

Number of inputs:
LINE: 70 mV / 47 kOhm

CD/DAT DIRECT IN: 240 mV / 47 kOhm

Number of outputs:
LINE: 388 mV / 150 kOhm
Headphones: 1.3 mV (8 Ohm)


Specifications

Tone heads:
1x LC-OFC Super GX sound head for playback.
1x LC-OFC Super GX sound head for recording
1x erase head
motors:
1x FG Servo DD electronically speed controlled DC motor for drive shaft drive.
1x DC motor for coil drive
1x DC motor for cam drive and for belt ejection/loading
Synchronization fluctuations: 0.025% WRMS, 0.04% (DIN)
Belt types: Normal, CrO₂ and Metal.
Frequency response:
Normal: 20 to 19,000 Hz ±3dB.
CrO₂: 20 to 20,000 Hz ±3dB

Metal: 20 to 21,000 Hz ±3dB

Distortion factor: < 0.6 % (for metal)
Signal-to-noise ratio:
59 dB (measured over tape at recording peak level).
Dolby™ NR Type B on: improved by 5 dB at 1 kHz, 10 dB above 5 kHz.
Dolby™ NR Type C on: improved by 15 dB at 500 Hz, 20 dB at 1 kHz to 10 kHz.
Auto Reverse: no
Title search: 16 titles with IPSS function.
Dolby™: B, C and HX PRO.
MPX filter: yes
Fader: no
Pitch control:
CD synchro recording: no


Special Features

3-tone head system, Super GX tone heads incorporating LC-OFC (linear crystal/oxygen-free copper).
Microprocessor-controlled turntable with "Power-Eject" and extremely quiet mechanics
Closed loop double capstan shaft system by direct drive
Stable tape transport mechanism with wide tape guides
Automatic monitoring system
Automatic belt tensioning system
Partial unloading system
Useful record cancel and mute system * Repeat playback function of a section
Repeat playback function of a section between 2 points
Large concentrated FL display with indicator on/off function to reduce unwanted noise
Peak level meter with peak hold system
Recording calibration system with premagnetization and level controls
Separate block construction
Highly stable design
Remote controlable with optional remote control (RC-G95)
Timer start function
Easy-to-operate large-diameter recording level control
Digital time/tape counter
Counter memory stop system
Automatic playback system
16-title IPSS system
Recording level indication system
Independent switch for multiplex filter
Switch and input jacks for CD/DAT Direct
Headphone jack and level control
Automatic Tape Selection System
