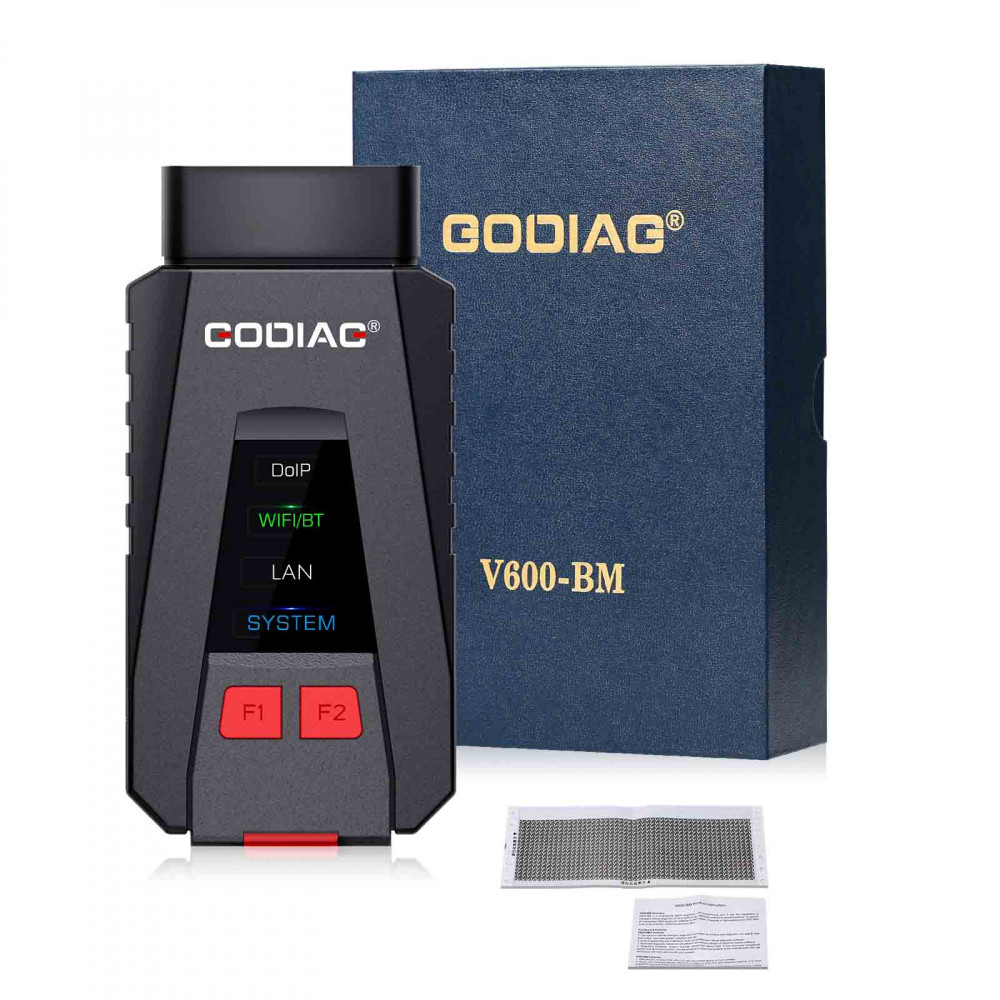

GODIAG V600-BM Diagnoza + programare BMW cu DOIP K-Line CAN FD

GODIAG V600-BM Functions

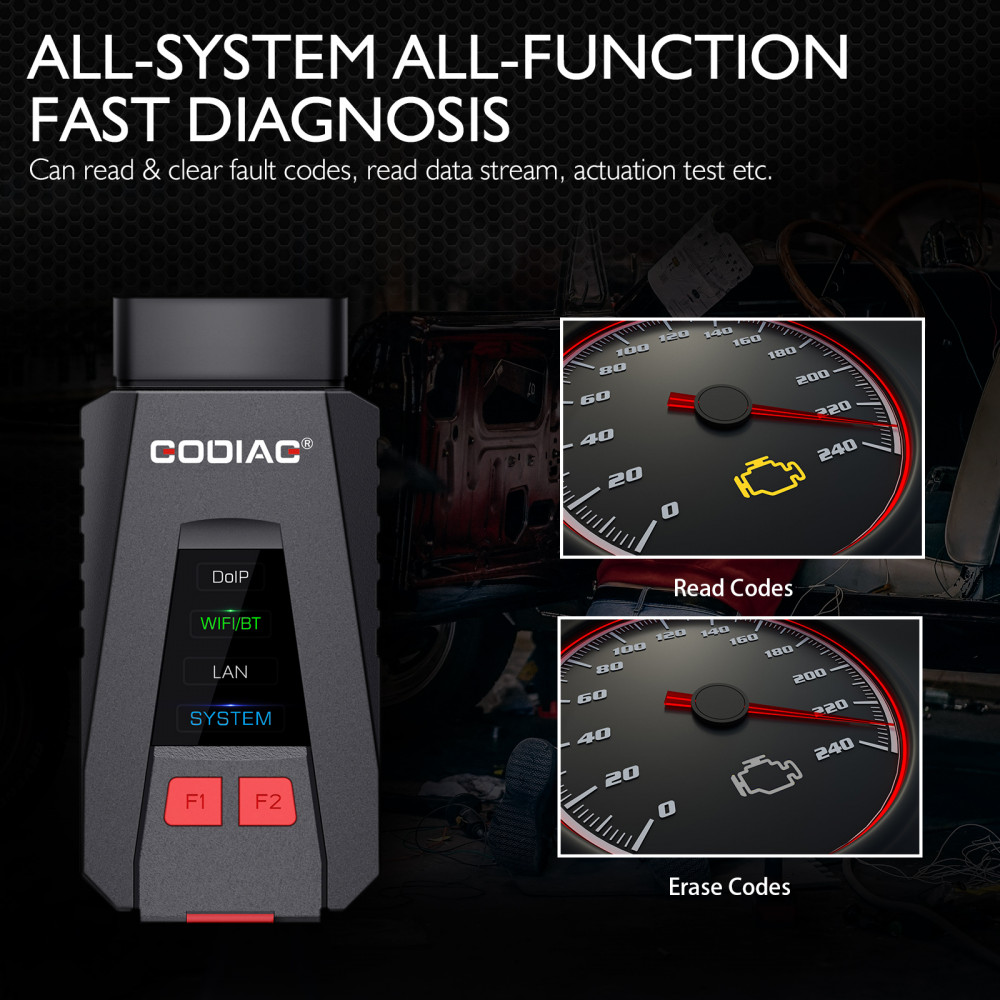

1. Can perform vehicle intelligent diagnosis, all-system all-function fast diagnosis; can read & clear fault codes, read data stream, actuation test etc.
2. ECU programming and calibration. Fully compatible with official diagnostic software
3. Multi-task diagnosis: based on the efficient architecture design of diagnosis service software
4. Diagnostic feedback: support one-key upload the device logs. If you encounter exceptional vehicle and abnormal function, you are allowed to report the problem to the manufacturer, then the technicians will track and handle your problem.


GODIAG V600-BM Features

1. With the size of about 108 x 52 x 27 mm, the pocket device is more portable
2. Brand new industrial design, the shell is made of solid and stain-resistant material, it is more suitable for the automobile maintenance environment.

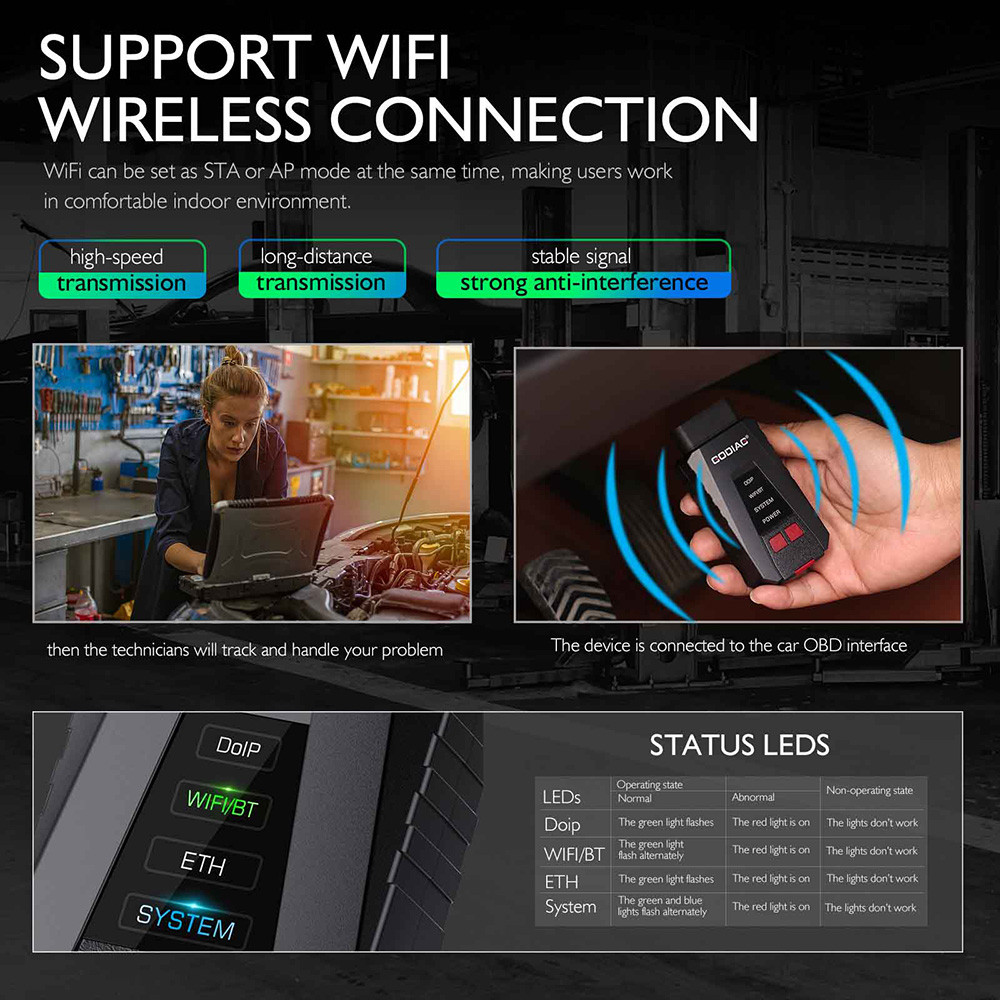

3. Support WiFi wireless connection, high-speed transmission, long-distance transmission, stable signal and strong anti-interference; WiFi can be set as STA or AP mode at the same time, making users work in comfortable indoor environment.

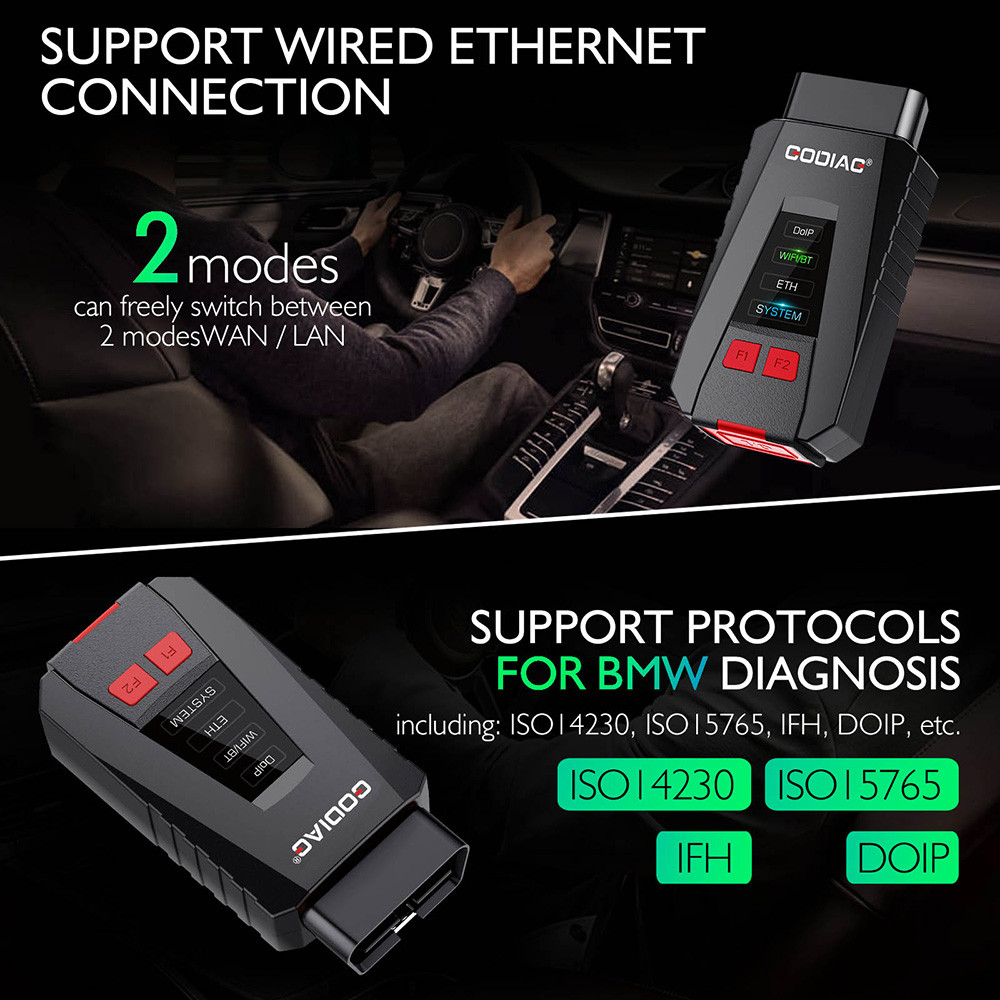

4. Support wired Ethernet connection,can freely switch between 2 modesWAN / LAN.
5. Support protocols for BMW diagnosis, including: ISO14230, ISO15765, IFH, DOIP, etc.
6. Cover a wide range of vehicles and support efficient and reliable diagnostic functionsand a variety of special functions.
7. Ensure communication security and can encrypt communication data to ensure device and vehicle safety.



GODIAG V600-BM Supported Software:


1. Compatible withTool32,  For BMW Coding, ISPI, INPA, E-SYS, WINKFP, NCS-Expert Tool
2. Compatible Protocol: J2534, CAN-FD, DOIP, D-CAN, ISO14230, ISO15765, IFH, K-line

GODIAG V600 Update Schedule:

1. Plan to add authorization of  Benz, Land Rover, Jaguar, CAN-FD, Toyota, VW, Audi (ODIS software)
2. Dedicated Android APP is under development , it will support both Ethernet  and WiFi communication.

Support OEM professional diagnostic function of all For BMW series:

1 series: 1'_E81/E81/E87/E88,1'_F20/F21
2 series: 2'_F22/F23,2'_F45/F46,2'_F87
3 series: 3'_E46,3'_E90/E91/E92/E93, 3'_F30/F31/F34/F35,3'_F80
4 series: 4'_F32/F33/F36,4'_F82/F83
5 series: 5'_E39,5'_E60/E61,5'_GT(F07), 5'_F10/F11/F18
6 series: 6'_E63/E64,6'_F06/F12/F13
7 series: 7'_E38,7'_E65/E66,7'_F01/F02/F03/F04, 7'_G11/G12
X series: X1_E84,X1_F48/F49,X3_E83,X5_E53,X5_70,X6_E71,
X6_E72,X3_F25,X5_F15/F85,X6_F16/F86,X4_F26
Z series: Z4_E85/E86,Z4_E89
I series: I'_I01/I02
MINI:  MINI_R50/R52/R53, MINI_R55/R56/R57/R58/R59/R60,  MINI_F55/F56


GODIAG V600 Stand-Out Features:

1. Contained with dedicated For BMW software (same as ICOM, ICOM A2 / A3 / NEXT etc, no need to install any driver.)


Engineer programming & coding software for F series vehicles


WINKFP: engineer programming software for E series vehicles.
NCS-Expert Tool: engineer programming software for E series vehicles.
Tool32: engineer command execution software for E series vehicles.
For BMW Coding Tool: WINKFP NCS auxiliary software for importing engineer data for E series vehicles.


2. Provide a variety of communication modes:
USB 2.0
DoIP indicator
Ethernet 10/100Mbps
WIFI/BT 802.11 indicator  150Mbps
ETH indicator
System Indicator

3. Specifications
Suitable power: 7-32 V
About 300 mA when the power is 12V
High-speed processor: CPU 580 MHz MIPS, 32MB FLASH,128MByte RA, Built-in 32G TF card(optional)

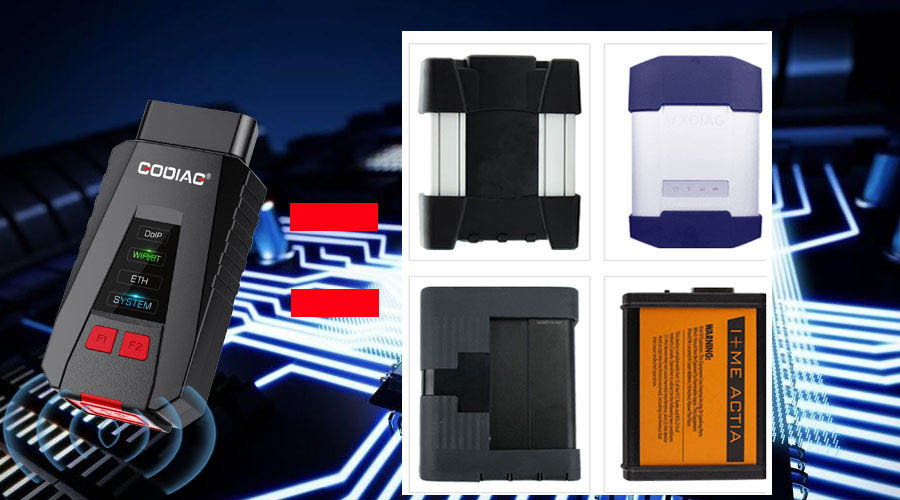

4. Replace any of these For BMW diagnostic tools: For BMW ICOM, ICOM A2 / A3 / Next etc.


5. The Button Function:
F1-Press it for more than 3s to reset factory setting
F2-Press it to restart system

V600-BM Parameters:
