Launch X431 PAD VII PAD 7 diagnoza, programari, codare online si calibrare ADAS

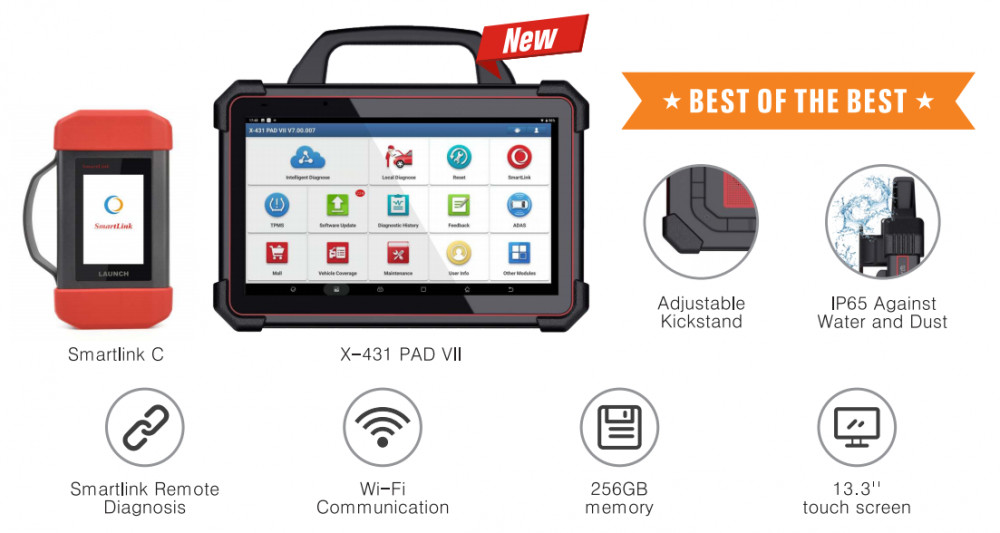

Launch X-431 PAD VII Highlights:

- Two Years Free Update Online. Car software update fee is 577EUR/year; Truck software update fee is 535EUR/year
- This is Global Version Without IP Limitation
- Multi-Language Supported: English, German, Italian, French, Spanish, Portuguese, Swedish, Croatian, Polish, Czech, Russian, Greek, Dutch, Thai, Finnish, Danish, Romanian, Japanese, Arabic, Persian, Hebrew, Chinese, Korean, Turkish.
- Optimized 2.0 GHz Octa-core chipset, Android 9.0 OS, 8GB memory & 256GB storage
- Dual WiFi connectivity for maintaining faster and stable connection
- IP65 waterproof & dustproof
- Smartlink C VCI supports remote diagnosis without being on-site and the limitation of diagnostic functions, tools and vehicle types.
- Real-time voltage display for voltage condition monitoring
- Topology mapping for visible checking on full vehicle system
- Quick access ADAS calibration features
- Numbers of built-in repair guidance & training videos
- 8 add-on modules
- 50+ service functions

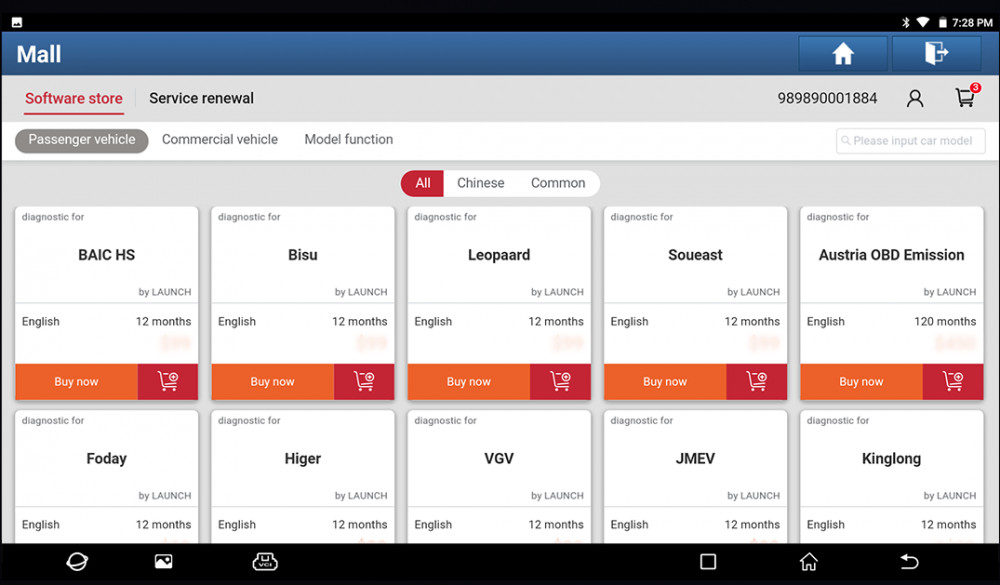

- Expand & upgrade your scanner via new module  'MALL’

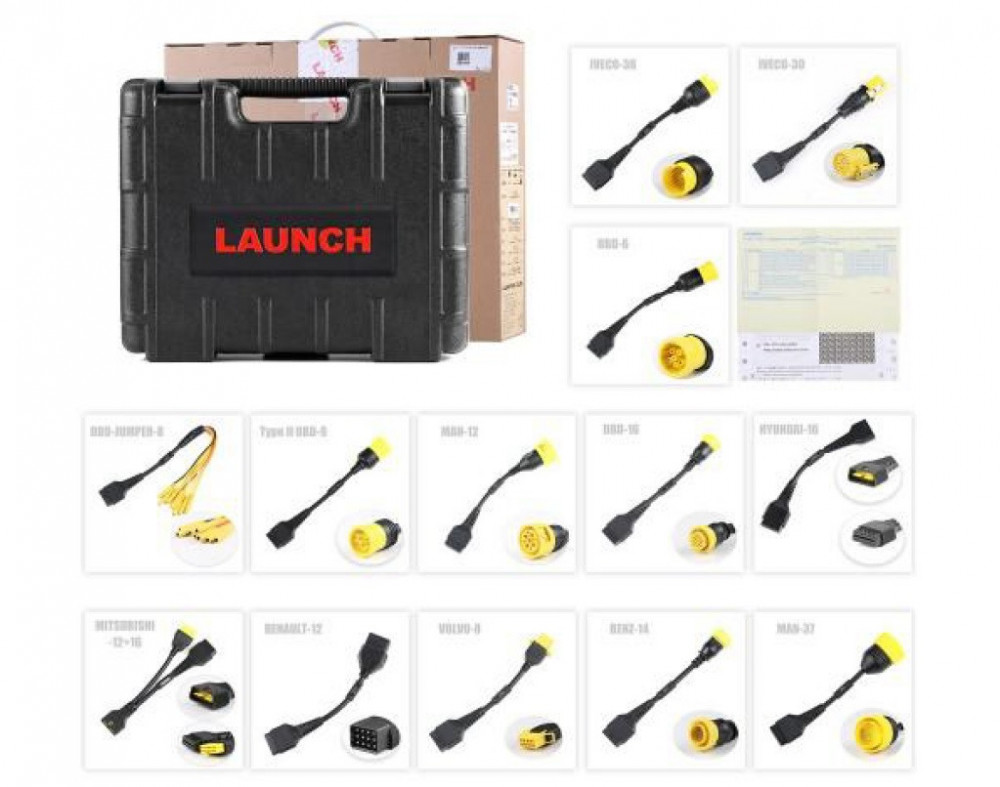

- Launch X431 PAD VII supports truck diagnosis, you need buy the heavy duty license, and we will open the license for you and send a free set of truck cable to you



BULLET POINTS:

Meet LAUNCH X431 PAD VII : The phenomenal all-in-one diagnostic scanner, the newest upgraded scan tool of ProS V, V+, PAD III/V in X431 series. All set to top-notch standards to make your ECU Programming/Coding, 35+ Reset Services, 60+ Special Functions, Active Test, All System Diagnostics, Topology Mapping, DTC Troubleshooting Guidance, OBDII Connector Pin Detection, etc. accurate, efficient and OE-level approved. Together with worldwide car coverage of 110 brands (J2534/RP1210/D-PDU/CAN/DOIP/CAN FD) + 30 days unconditional return & replacement policy + 1 years product quality backup.

J2534 ECU Programming: This diagnostic tool comes with SmartLink CVCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. Available for VAG Group Vehicles, Benz, BMW, and Porsche etc, without use of often very expensive factory automotive scan tools. **Reach us for details.

ECU Programming & Coding: This diagnostic tool comes with SmartLink CVCI box as a pass-thru tool to connect with OEM software for effective J2534 ECU programming, to replace the existing software/firmware in the ECU, program new ECUs, and fix software-controlled driving performance and emission issues. ECU Coding for Component Matching after replacement, or reflashing modules to active features / deactivate hidden features, without use of often very expensive factory automotive scan tools. **Reach us for details.

Support Latest Car Protocols: To diagnose the complex issues for passenger cars and even trucks, SmartLink CVCI Box is developed as a smart solution to support wide array of diagnostic protocols (J2534/RP1210/D-PDU - for passenger cars and commercial vehicles; CAN/DOIP/CAN FD - the latest protocols), covering U.S., Asian and European markets over 110 brands, and is continually updated. You may go to the “MALL” module to make in-app purchase of HD vehicle software.

OE-Level Diagnostic Tool: 35+ Reset & Relearn Services (Oil Reset, Injector Coding …) for necessary repairs and adjustments in workshop; 60+ Advanced Special Functions (PMI, Power Balance, Online Calibration, Online Account Login Service …) for complete diagnostics to help grow customer base. Meanwhile, 8 extended modules include Videoscope, Oscilloscope, SensorBox, TPMS Tool, Key Immobilizer and Battery Tester. This pro-level diagnostic scanner has everything to meet your various diagnostic needs and scenarios. **See details on page.

User-Oriented Diagnostic Scanner ①Factory-level All System Diagnostics: in-depth inspection of all accessible car modules as ECM, transmission, ABS, airbag, EVAP, TPMS, BMS, etc. to troubleshoot complex manufacturer-specific issues; ②Topology Mapping: check DTCs and all systems communication status visually. ③Merged 4-in-1 Live Data Graph: effortlessly detect problems during a test drive; ④Auto-detects the communications protocol; check OBDII connector pin damaged or not.

Great Combination: Based on Android 9.0 O.S, powered by fast 2.0GHz Octa-core optimized chipset, with visually stunning 13.3” 1920*1080 touchscreen, 2.4/5Ghz dual Wi-Fi connection, 32GB+128GB expandable on-board memory, 9360mAh battery (20+ continuous work), AutoVIN & AutoSCAN (2006+), one-touch one year software upgrade (no charge), massive built-in repair materials, etc., this 2021 newest diagnostic tool of LAUNCH X431 line makes your intelligent diagnosis faster than ever.

Superior Hardware Make Diagnosis Faster Than Ever

Launch X431 PAD VII is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.


Launch X431 Pad VII (PAD 7) Functions:

1. ALL System Diagnosis

Powerful all system diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly



2. Revolutionary Topology Module Mapping + 60+ Advanced Maintenance Services + 35+ Reset & Relearn Services

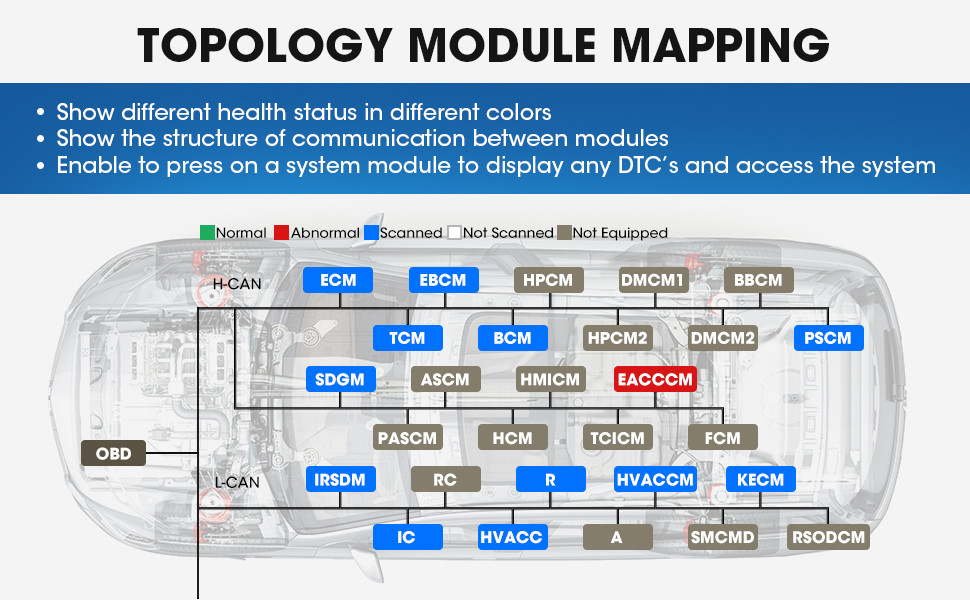

Revolutionary Topology Module Mapping

• It is the first application of topology module mapping in the field of automotive diagnostics. In terms of visual aspect, LAUNCH X431 PAD VII shows different health statuses in different colors and shows the structure of communication between modules. In the aspect of ease of use, it enables you to press the system module to access the system and display the relevant DTCs.

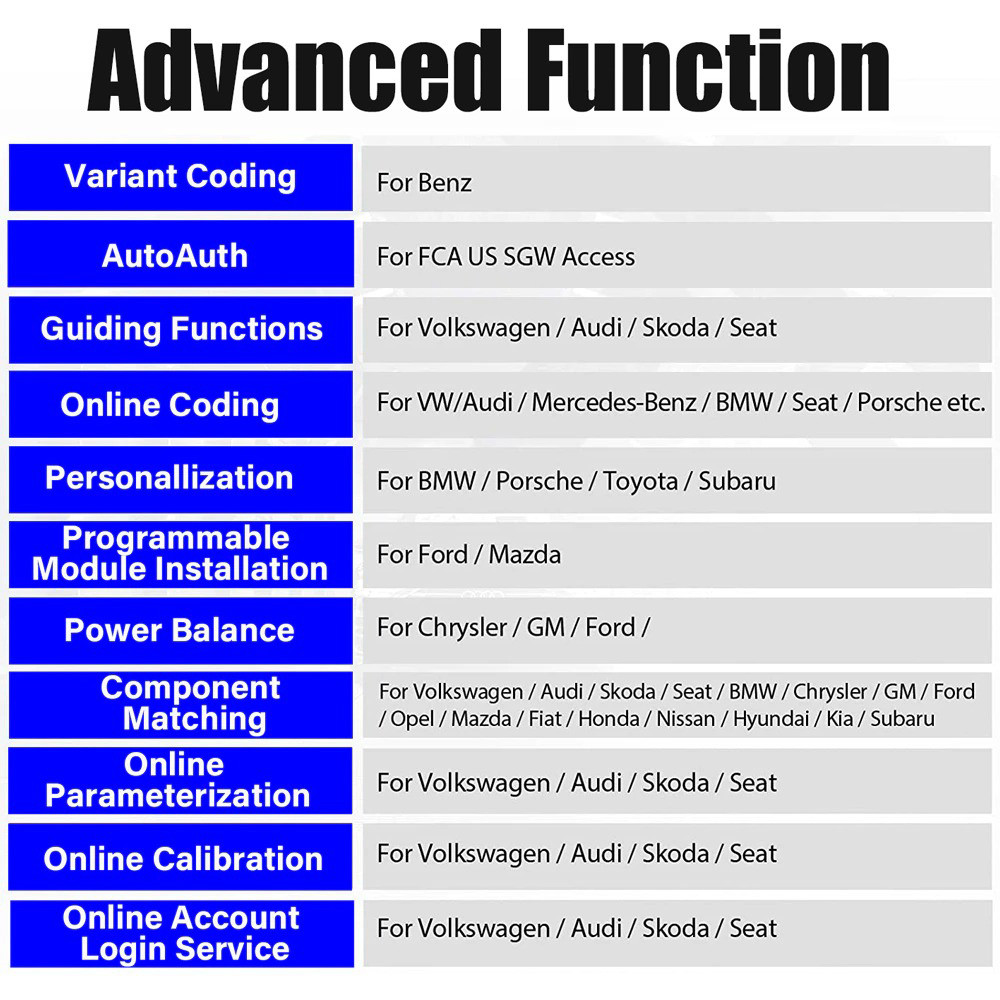

60+ Advanced Maintenance Services:

• Guided Functions: Skip the Security Access Code & Channel Number to perform matching, calibration, and basic settings for VW / Audi / Skoda / Seat; **NO extra costs.
• Component Matching: Rematch ECU (control module unit) after the replacement for VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.
• Online Parameterization: Reset all adaptive data in target systems after ECU module replacement; compatible with VW / Audi / Skoda / Seat.
• Online Calibration: For some car systems’ calibration; compatible with VW / Audi / Skoda / Seat.
• Online Account Login Service: Access to the login codes for coding, matching, and basic settings of all available systems.
• Programmable Module Installation (PMI): Ensure the correct software/calibration and configuration data are loaded onto the new module after replacement for Ford / Mazda.
• Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
• Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
• And many more are coming soon.

35+ Reset & Relearn Services

Cover the majority of makes and models worldwide up to 2019/2020/2022 for Oil Reset, Injector Coding, Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, Gear Learning, AFS Reset, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration, Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change, and more.

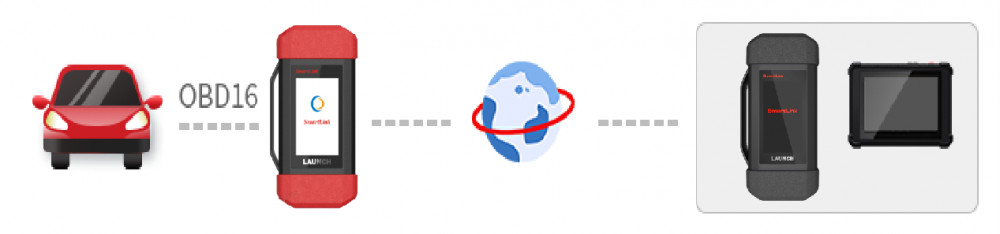

Smartlink Remote Diagnosis Introduction

SmartLink Remote Diagnostics is a brand new remote diagnostic technology that better links remote assistance demanders with professional technicians through the bridge role of SmartLink remote diagnostic service open platform. Professional technicians can carry out remote diagnostic operations on PCs (with J2534 driver and OEM software installed) to assist in the completion of remote diagnostics after users use SmartLink C connector as a J2534 Pass Thru device and connect it to the Ethernet.



3. Advanced ECU Coding and Online Coding

Reliable ECU Data Backup, Faster Recovery & Less Downtime

• When customizing your vehicle, there is always a question: will it be able to revert the changes in case of human error, system failure, or data loss that bricks the vehicle computer?
• This is where the “Backup/Recovery ECU Data” function can prove to be very useful.
• Unlike traditional car scanner backup methods that can be labor intensive and inconsistent, LAUNCH X431 PADVII provides a simple mechanism to back up all your ECU programming & coding data.
• It allows you to make a copy of your current Coding, Adaptations, and other info (such as Advanced ID and Live Data) of a selected control module, and save them as a file into your scan tool as a backup.
• To restore coding or programming values, just select the backup file you need and you’ll effortlessly get reverted back to the old settings/coding in a control module.
• For now this function is compatible with Ben.z all series, and B.M.W F/G/I chassis.
• **NOT universally compatible. Function menus may depend on vehicle’s make, model and year.

Programming Online for Benz & BMW, Save Your Labor Greatly

• LAUNCH stores the Benz & BMW’s massive programming data in the cloud, rather than relying solely on a hard drive, so you won't lose access if something happens to your hard drive.
• More, LAUNCH PADVII saves time to guide your programming directly. Unlike any scan tools before, it practically anticipates your next move by guiding you through every step you need to find the solution patch while avoiding the steps you don’t, within a highly intuitive user interface that’s simple to learn and operate.
• With this automatic Online Programming, you’ll have the confidence to tackle more challenges than ever before. The only requirements are a stable & solid internet connection, and an external battery charger for your successful operation.

>> Can I use the diagnostic tool to program Au.d.i, VW, Porsche … besides Benz and BMW?

• Answer: Yes, provided you have installed, downloaded the manufacturer’s programming software, and paid for the valid subscription.
• With SmartLink C VCI Box (compatible with J2534-1 & -2; value of 2000+ bucks), you can cost-effectively add new OEM applications for 30+ car brands, with no need to purchase separate, expensive OE scan tools for each brand.

>> What happens if I don't program a new ECU after installing it on my car?

• Answer: Nothing will happen, because the system doesn't know how to react, since the PROM that governs the circuits of ECU “what to do” is blank.
• It cannot command the injectors to open or the coil(s) to fire. It cannot command the fuel pump to send fuel. It cannot read the external temperature, or even the temperature of the coolant, because there are no instructions defining what is hooked to the ECU, and there is no information to tell the system when to open the injectors, or for how long.

4. ADAS calibration Function and Extend 8 Module Functions

Optional ADAS calibration function increases more revenue.



What matters more for Launch X431 PAD VII?

It upgrades to support 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester. With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters, please notice



5. More Advanced Functions:


Q: What is the difference between the launch x431 pad vii and the launch x431 pad v?
A: Here has listed the differences between them for reference.
Hardware:
Display: X431 PAD VII (13.3”) > X431 PAD V (10.1”)
Memory: X431 PAD VII (8GB) > X431 PAD V (4GB)
Storage: X431 PAD VII (256GB) > X431 PAD V (64GB)
Battery: X431 PAD VII (71.1Wh (≈19000mAh)) > X431 PAD V (9360mAh)
Size (mm): X431 PAD VII (353 * 236 * 71) > X431 PAD V (320 * 211 * 46)
Operating System: X431 PAD VII (Android 9.0) > X431 PAD V (Android 7.1)
LAUNCH X431 PADVII supports more advanced services than launch x431 pad v, such as: AC System Relearn, ACC Calibration, Engine Power Balance Monitoring, Rotation Angle Sensor Calibration, and High-Voltage Battery Health Detection.

Q: Does the scanner connect to obd1 as well as obd2?
A: Yes, this launch scanner x431 pad vii can connect to OBD1 and OBD2 vehicles. and the package list includes non-16pin connectors set.

Q: can work on maserati?
A: Yes of course .
LAUNCH X431 PAD VII Reprogramming took can support many functions of Maserati

Software Coverage:

Passenger vehicles:

1. Australian:  AUST Holden, AUST Ford

2. Asian: Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

3. European: Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/Dacia, Fiat/Romeo/Abarth/Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

4. USA: USA Ford/Lincoln, GM/Buick/Cadillac/Chevrolet, Chrysler/Dodge/Jeep

5. Chinese: Changcheng(Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.

6. Special: Immobilizer/Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

7. Others: EOBD, Demo

Heavy Duty Vehicles (Optional):

Software Coverage:

Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Powerful special functions:

Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function

Launch X431 PAD VII Display:




Specification:

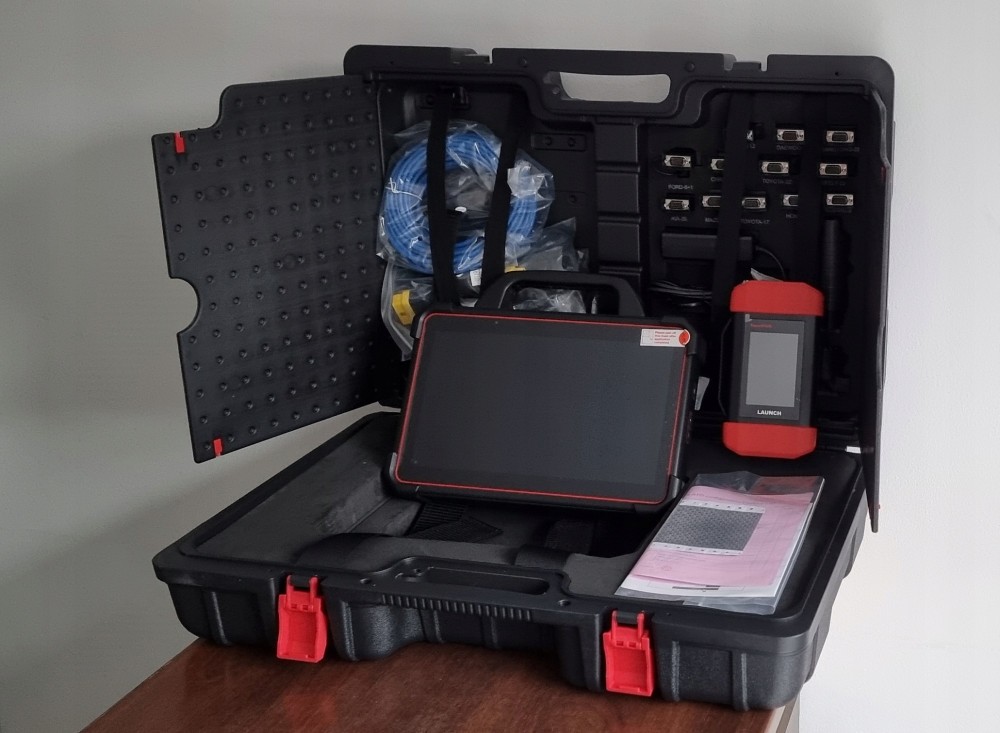

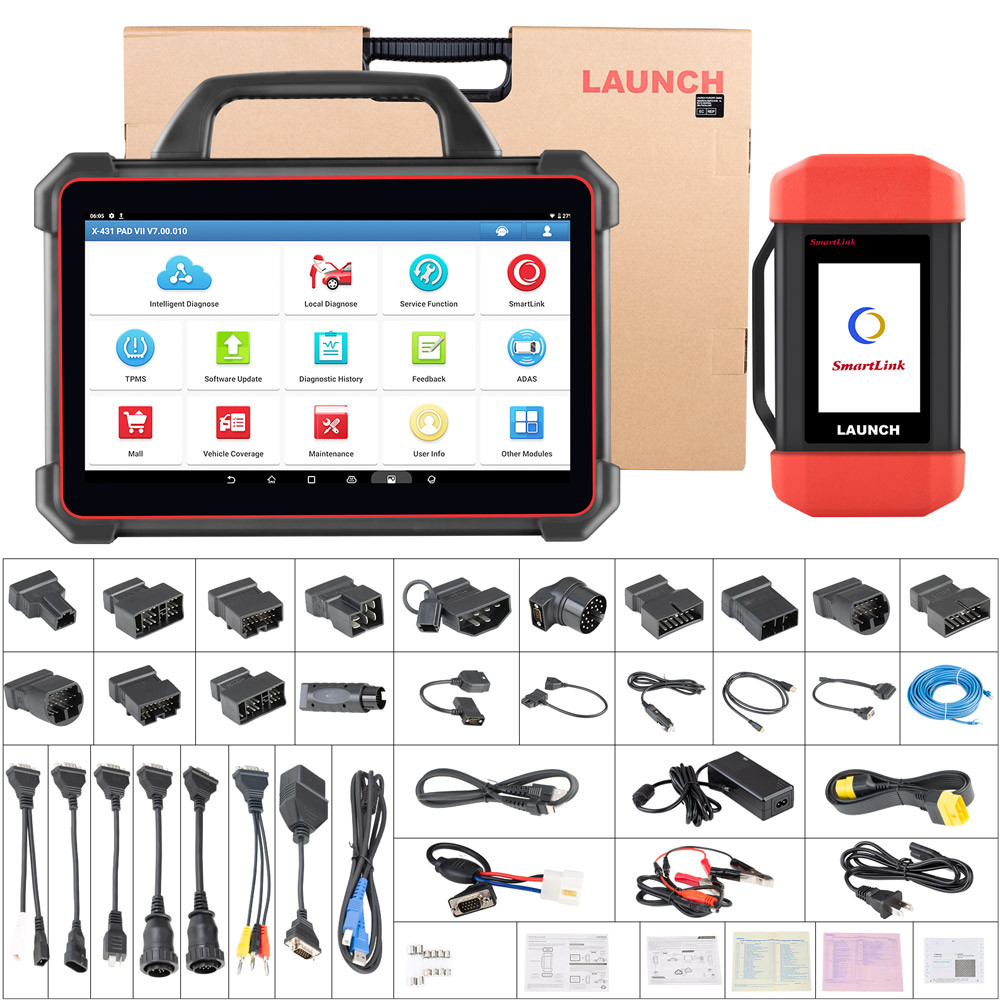

Package List:

1x X-431 PAD VIImain unit

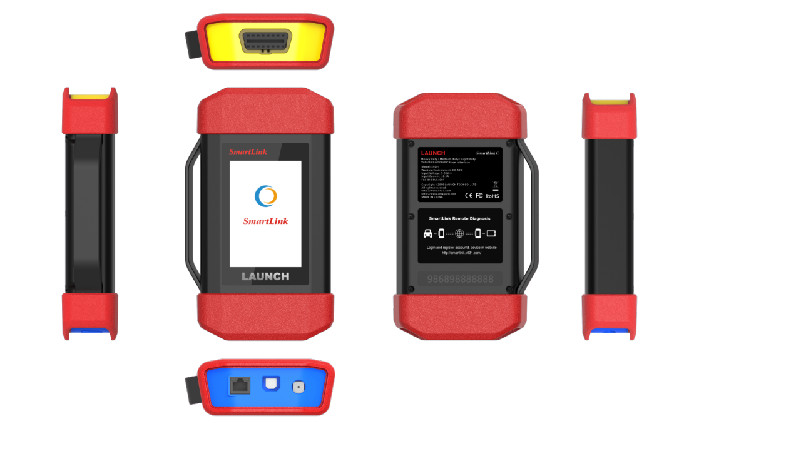

1x Smartlink C diagnostic connector
1x Micro USB cable
1x Cigarette lighter cable
1x 5V DC out power adaptor
1x Battery clamps cable
1x OBD II extension cable
1x Non-16pin connector converting cabel
1x Password envelope
1x Non-16pin connectors set
