Launch X431 S2-2 Sensor simulator and tester

Features:

1. Check the ECU itself works or not
2. It supports manual write the waveform data
3. Simulate working condition of sensors without replacing parts
4. Simulate some special working condition of sensors without replacing parts
5. Be used as Multimeter to measures resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc.
6. One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.

S2-2 Sensorbox is specially developed for diagnosing/simulating sensor faults. It mainly includes “Sensor”, “ Actuator”, “Defined/Drawn”, “Timing Waveform“ and “ multimeter”.

• Sensor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
• Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.
• Multimeter: Through this function, users can test voltage, resistance, and capacitance.

Launch Sensor S2-2 2 box Features


• Contains an integrated library of standard waveforms
• One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.
• Simulate working condition of sensors without replacing parts

          Throttle & Pedal Sensor
          Airflow Meters
          Oxygen Sensor
          Temperature Sensor
          EGR Sensor
          Injectors Sensor
          Crank
          Cam sensors inductive & hall

Compatible with DBScar VII Device


• X431 device:  X431 pro 5, PRO3S+ V5.0, V+, X431 Pro3 APEX, PRO DYNO, PROS V5.0, X431 PRO TT, Pro3 ACE, X431 PRO ELITE, PRO3S+ SmartLink HD, PRO3 V+ Elite,
• IMMO Series: IMMO Plus,  IMMO Elite,
• PAD Series: PAD VII Elite, PAD V Elite,
• Creader Series: CRP919X BT, CRP919E BT

DEFINED


• Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
• Frequency: Set the frequency of the selected waveform.
• Amplitude: Set the amplitude of the selected waveform.
• Offset: Set the offset of the selected waveform.
• Phase: Set the phase of the selected waveform.
• Duty cycle: Set the duty cycle of the selected waveform.
• Signal sync: Can cause CH1 and CH2 to output signals at the same time.

HAND-DRAWN


• Total frame: 1-3 (optional). Indicate the total number of output points
• Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
• Edit frame: You can edit a single frame or edit all
• Waveform: You can select a preset waveform and place it in the hand-drawing area
• Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
• Amplitude: Amplitude of the output waveform
• Offset: Offset of the output waveform

How to Connect S2-2 Sensorbox

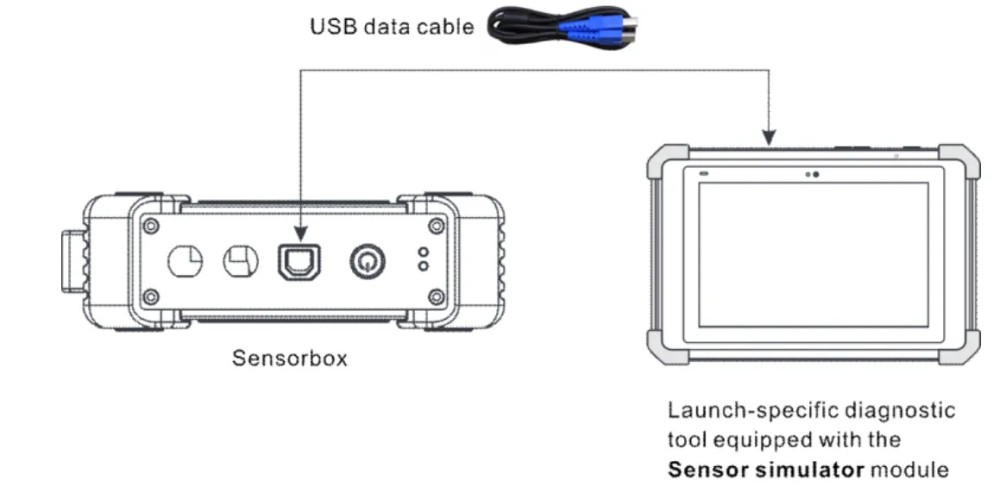

1) Insert one end (B-type terminal) of the USB cable into the B-type USB port of the sensor module host, and then insert the other end into the USB port of the diagnostic tool.



2) Press and hold the power button for over 3s to start the sensor module. If the electric quantity is normal, the green lamp is steady on.Indicator lamp status description:

Green lamp:

• Steady on: normal electric quantity
• Flashing at an intermediate speed: low electric quantity (regardless of whether red lamp flashes)
• Flashing at a low speed: charging in progress

Red lamp:

• Steady on: diagnostic tool connected
• Flashing: diagnostic tool disconnected. It will enter the charging status only when the red lamp is flashing. The green lamp is flashing at a low speed during charging.

3) Start the diagnostic tool and access the toolbox. Tap Sensor Simulator to access the job menu of sensor.

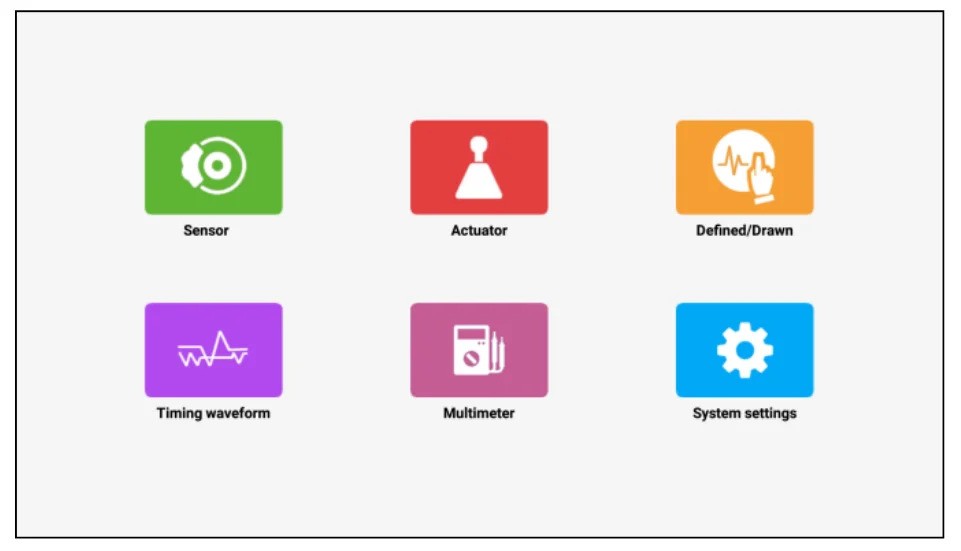

Job Menu

The sensor module is mainly divided into five functional modules

1) Sensor: Use output voltage or waveform to simulate the working status of the on-board sensor, so as to accurately judge the quality of the sensor and reduce blind replacement of accessories.
2) Actuator: Used to output PWM signal to drive the on-board coil actuator.
3) Defined/Drawn: Users can customize sensor waveforms to facilitate future sensor signal simulation.
4) Timing waveform: Customize timing waveform to match the engine (crankshaft + camshaft), and output in the same phase.
5) Multimeter: universal multimeter functions.

LAUNCH X431 S2-2 SensorBox Operation Guide:

Function 1: Test Actuator
Provide sensor voltage to operate & test actuator injector, VVT actuator, solenoid valve.

Operation:

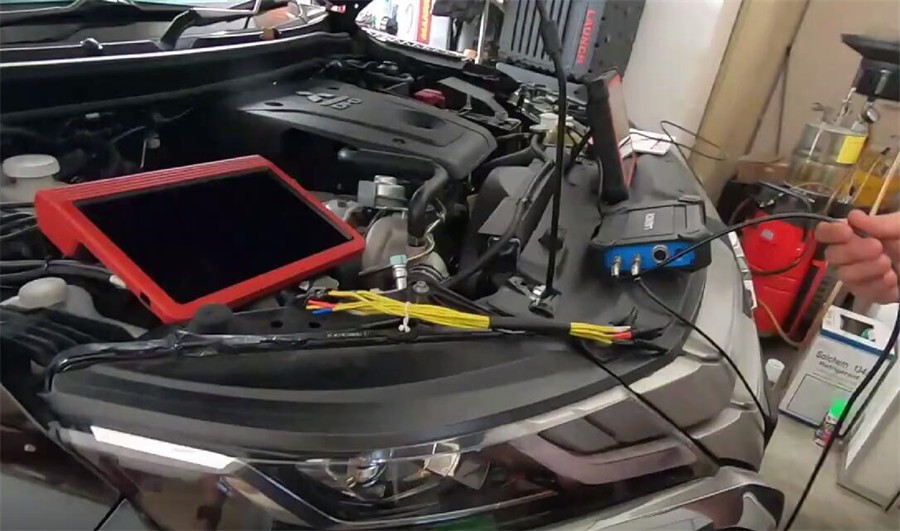

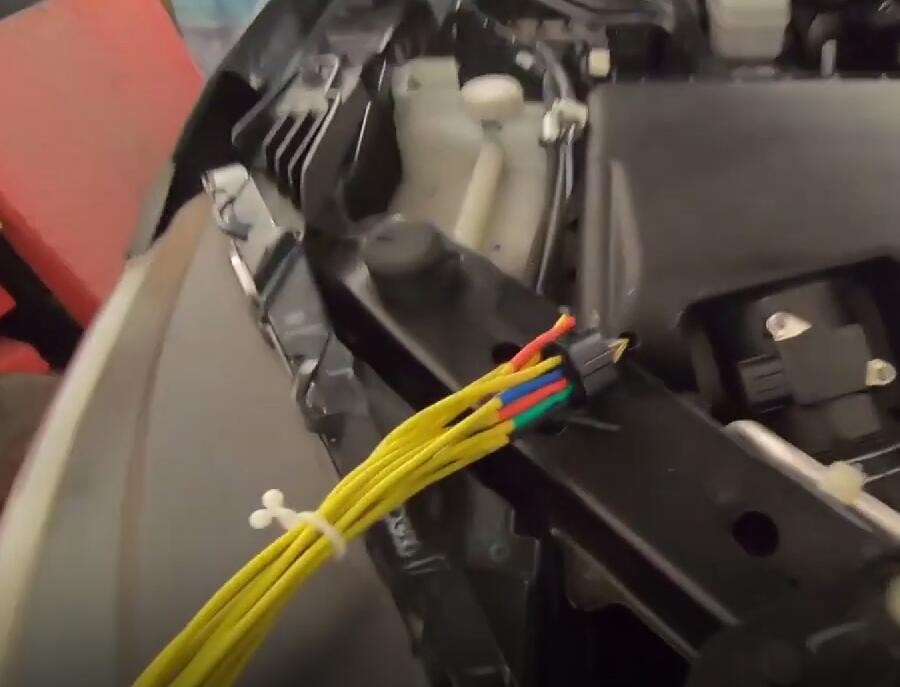

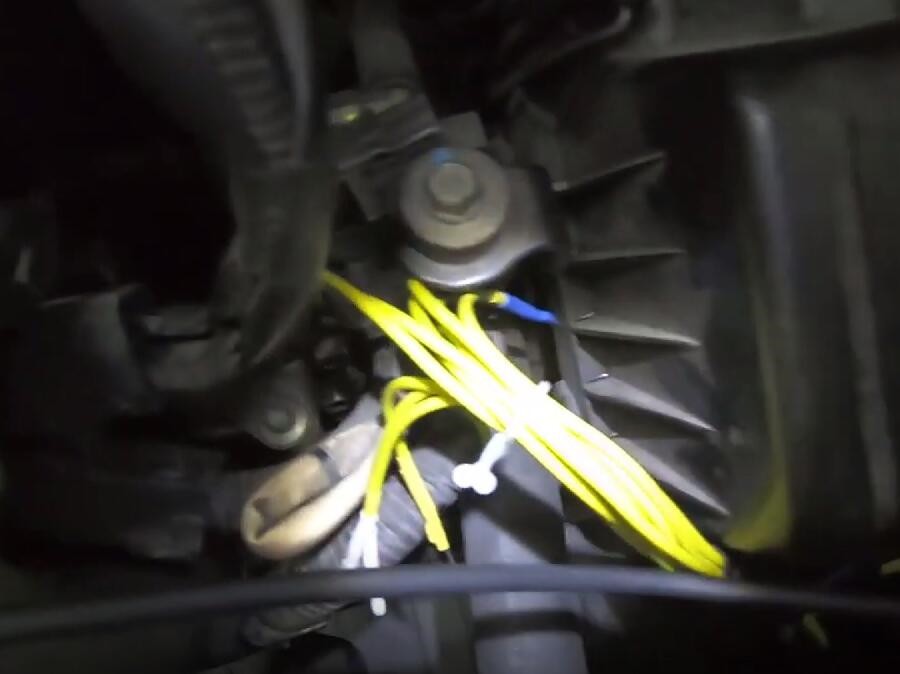

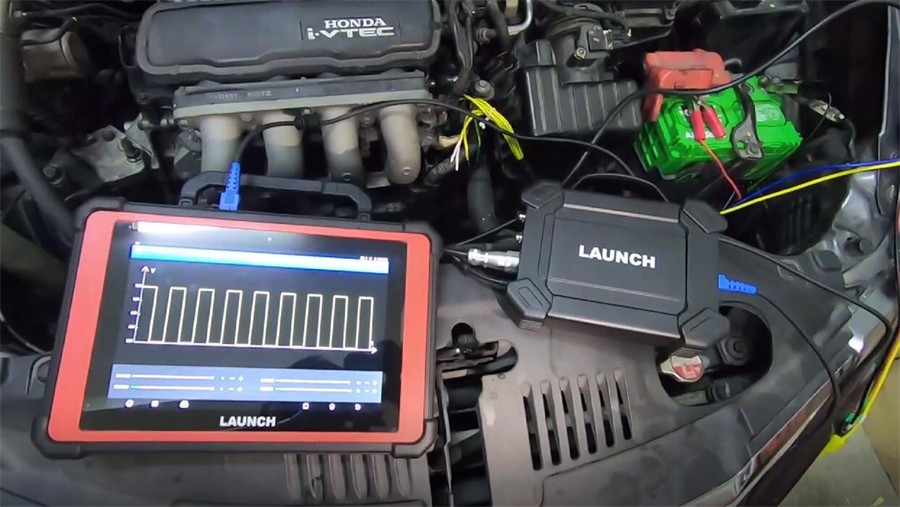

Follow the connection images to connect S2-2 SensorBox and the vehicle correctly

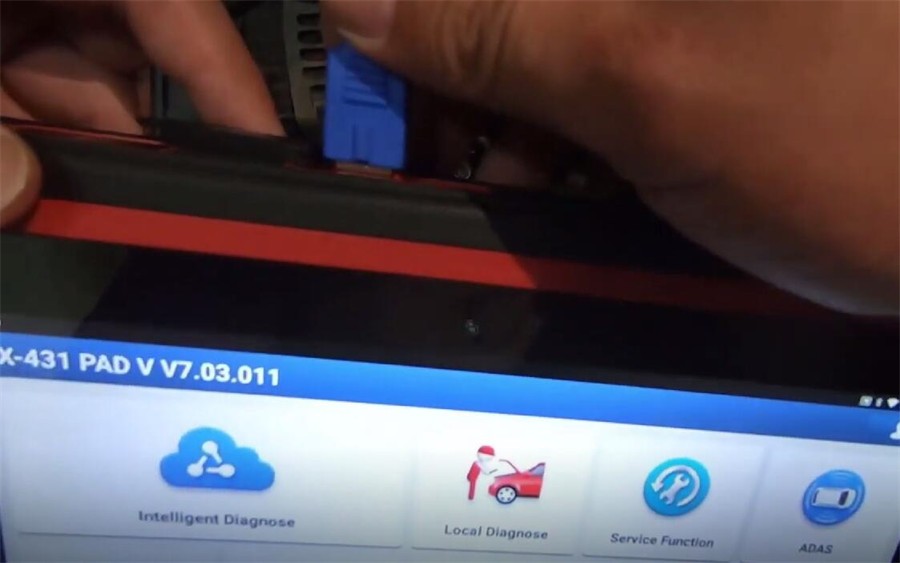

Insert the USB Cable in the S2-2 SensorBox package into Launch X431 Tool (i.e. X431 PAD V)

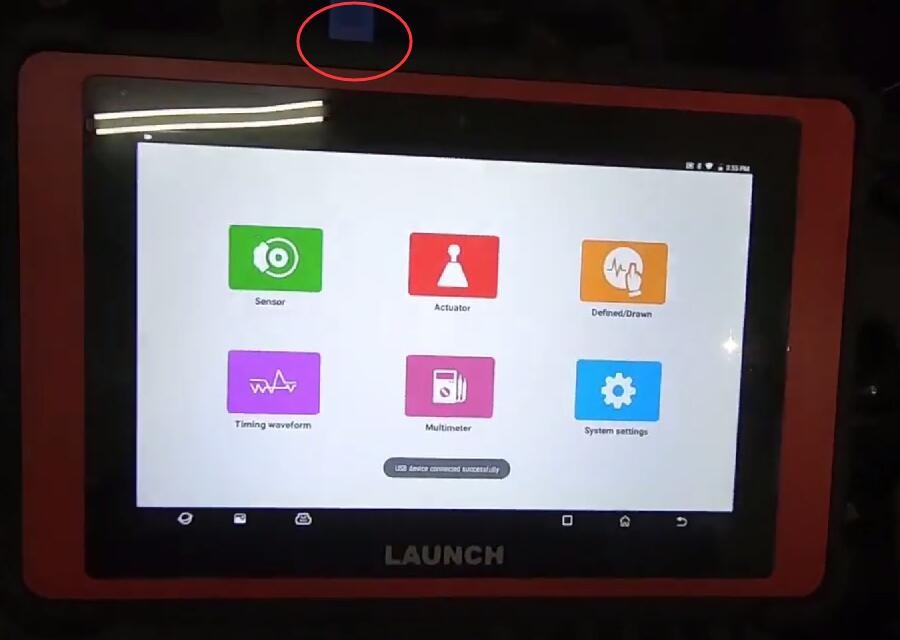

It will show “USB device connected successfully” once the USB cable is inserted.

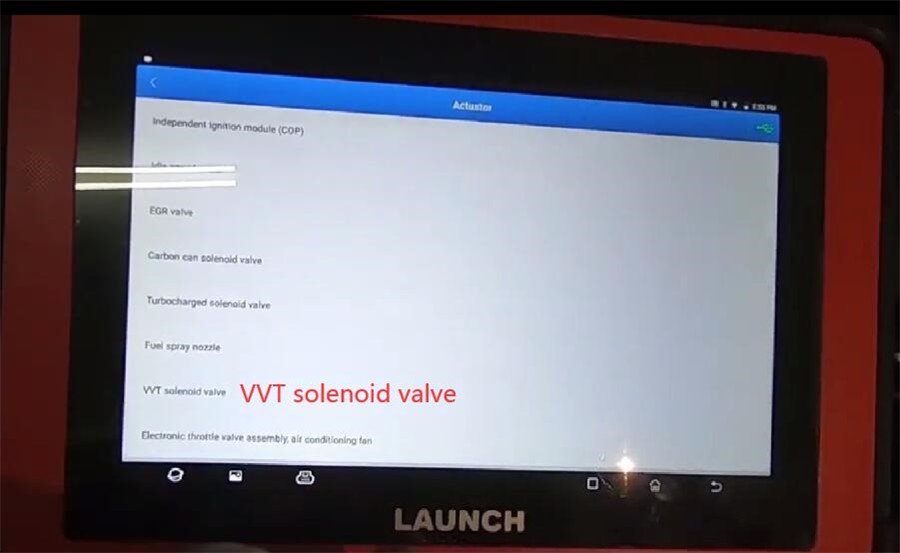

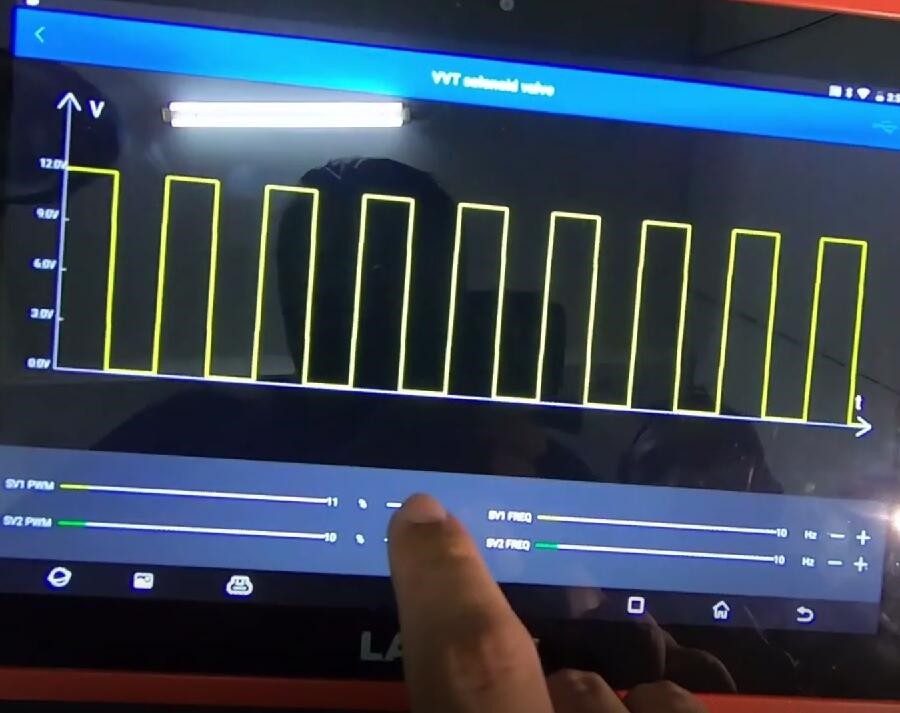

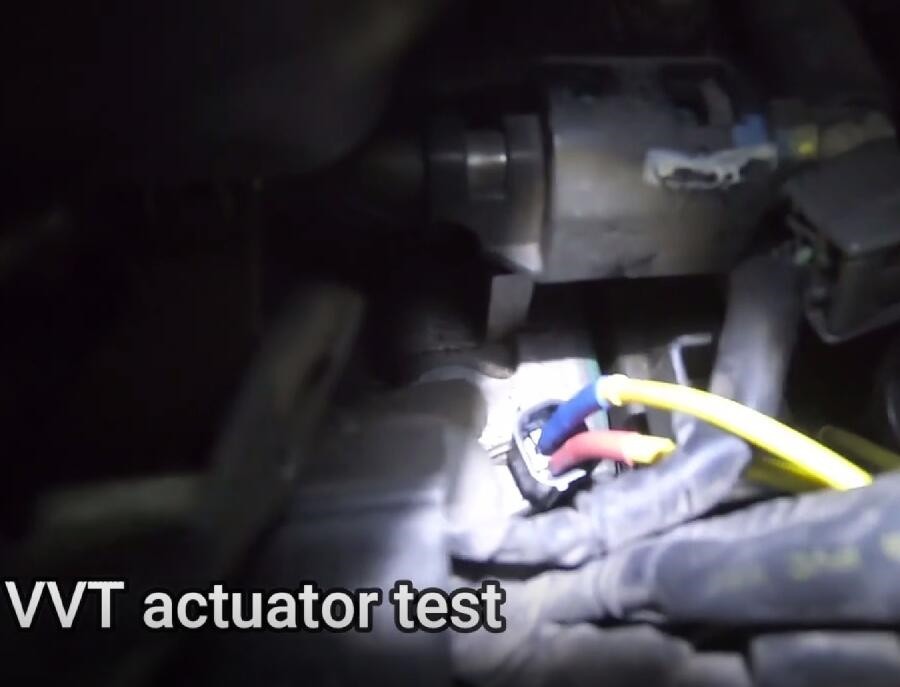

Then select Actuator>> VVT solenoid valve





Press the “+” or “- ” to adjust the value




Function 2: Simulate sensor waveform for ECU

Troubleshoot the car without replacing the sensor.

Easy to check ABS speed sensor, crank & cam sensor, Temp sensor…

Operation:

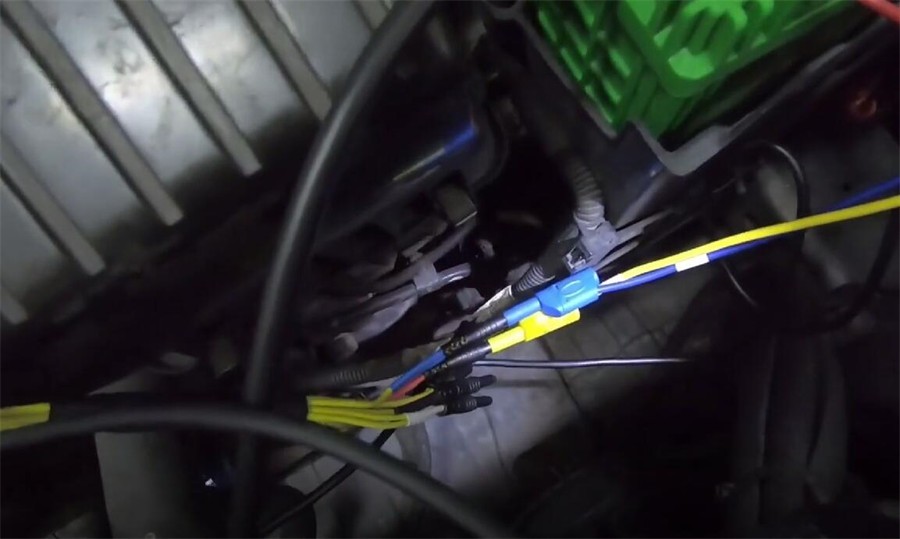

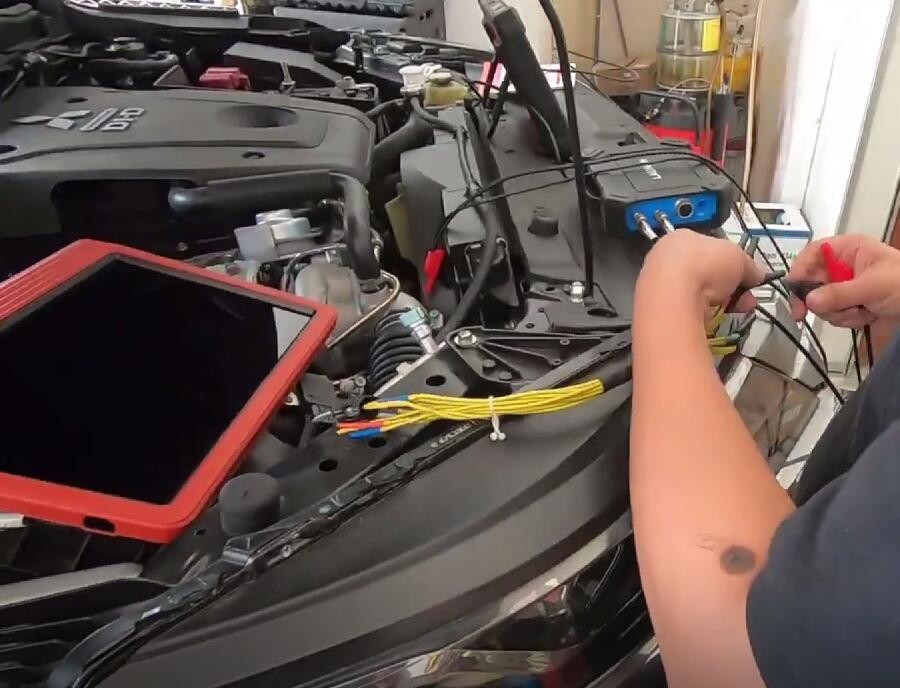

Follow the connection images to connect S2-2 SensorBox and the vehicle correctly

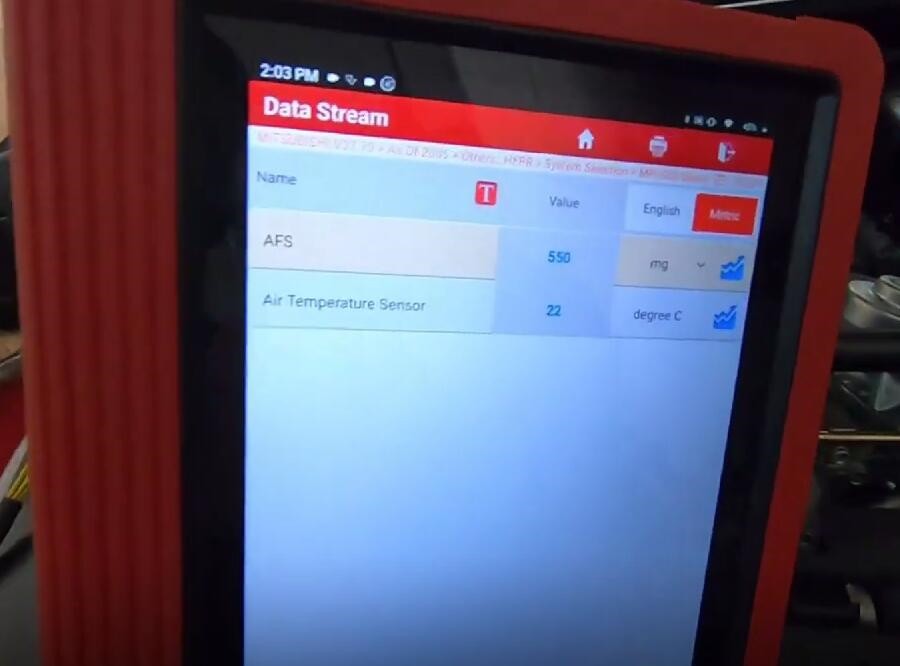

Read the data stream successfully



Function 3: Multimeter

Allow you to troubleshoot with 1 tool

Operation:

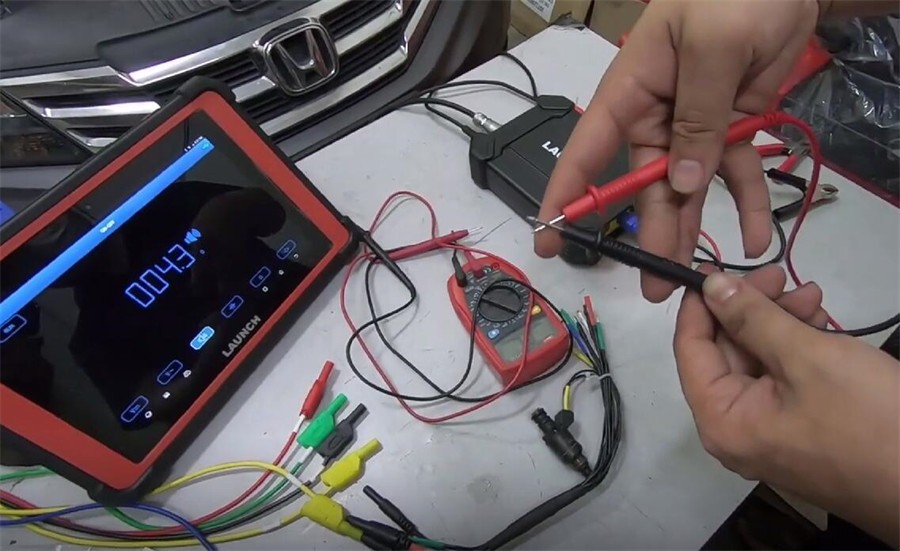

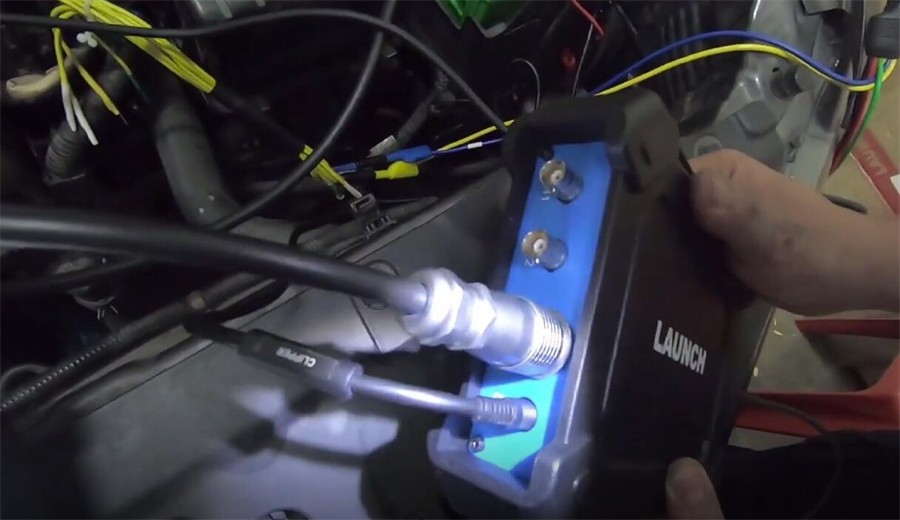

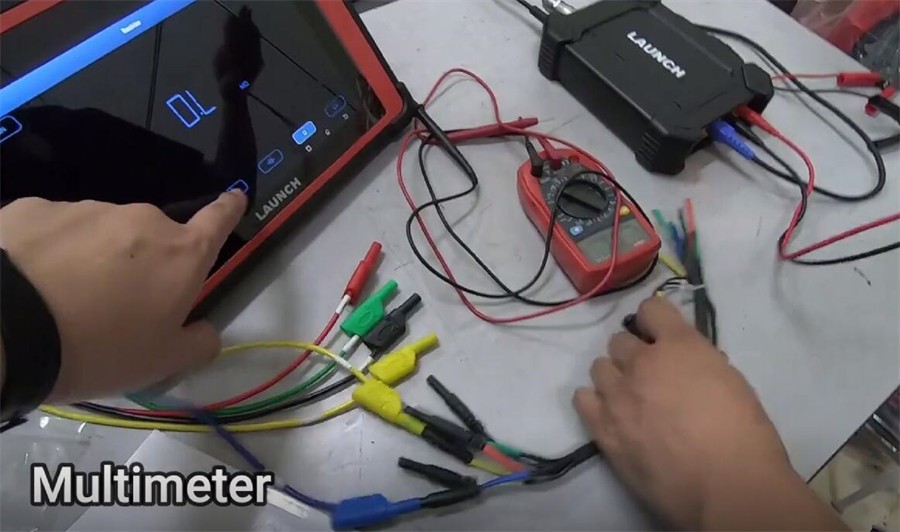

Connect S2-2 SensorBox and X431 tool, and connect the multimeter test pens to S2-2 SensorBox

Through this function, users can test voltage, resistance, and capacitance.




X-431 S2-2 TECHNICAL PARAMETERS

Sensor module:

Multimeter:

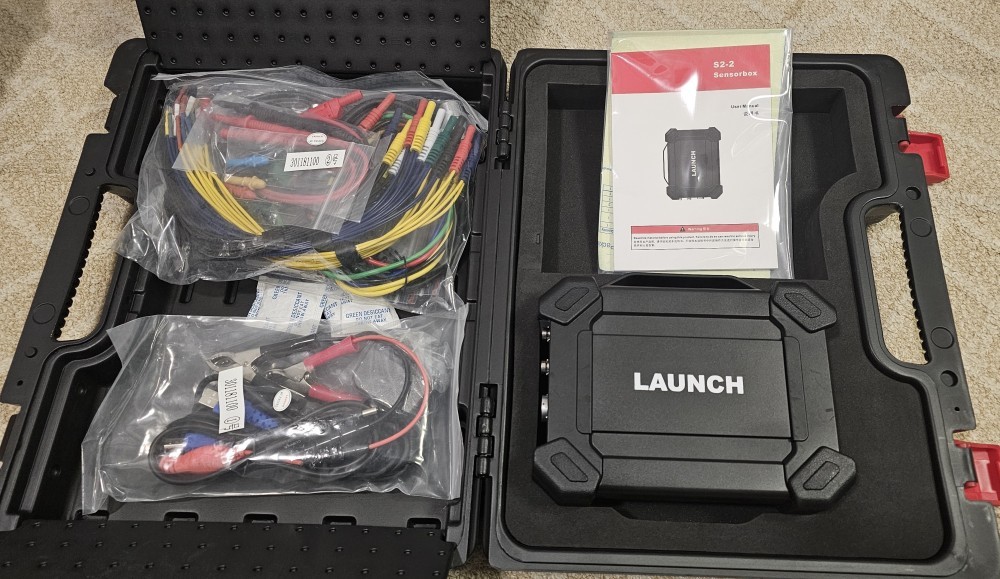

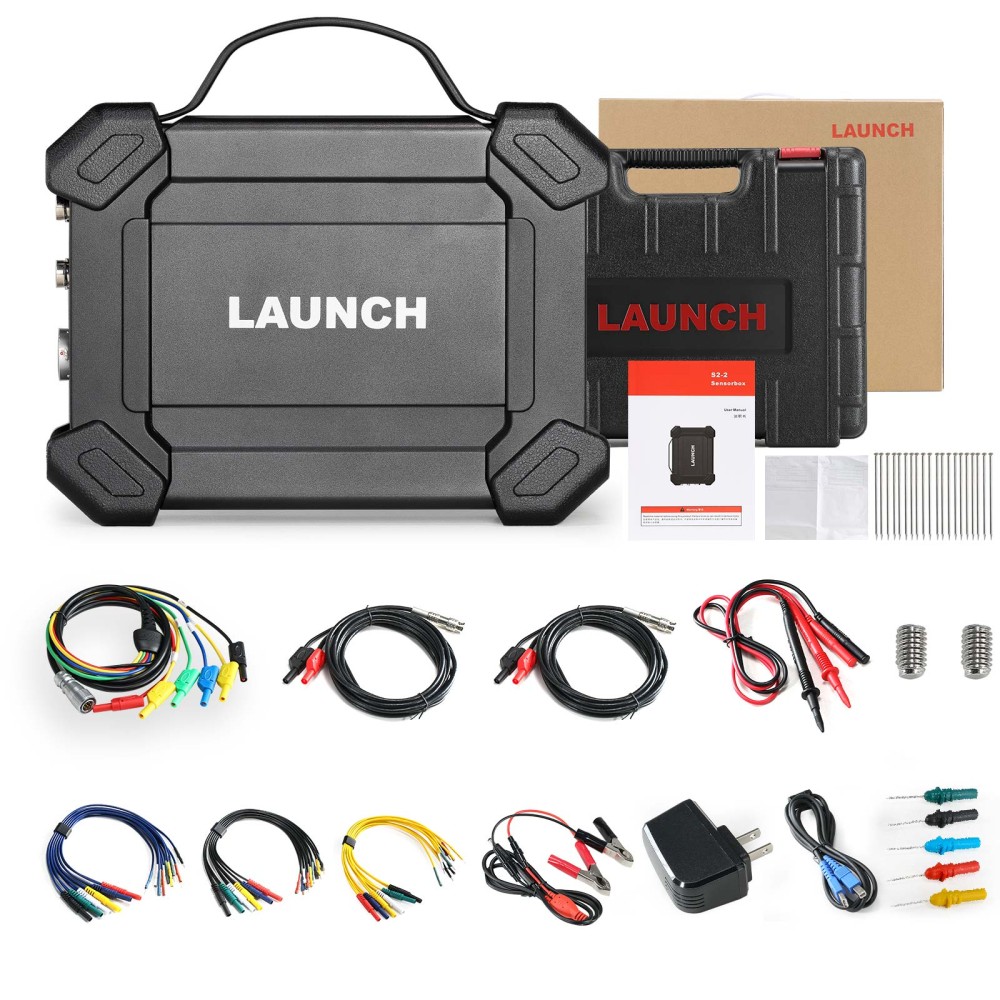

Package Includes

1pc x Sensor module
2pcs x  HT30 test leads
1pc x 7-pin interface adapter cable
1pc x Battery clamps cable
1pc x USB cable
3pcs x 6-way breakout lead
2pcs x Multimeter test pen (black + red - )
5pcs x Colored 4mm female probes
20pcs x Needles
1pc x Power adaptor
2pcs x Screw heads
1pc x User manual
1pc x Packing list
1pc x Box
