Osciloscop Launch O2-2 Scope Box 4 canale 100MHz, 10M Buffer, - PRO3S+ V5.0/PAD VII

Name: Osciloscop Launch O2-2 Scope Box 4 canale 100MHz, 10M Buffer, - PRO3S+ V5.0/PAD VII
Brand: Nespecificat
SKU: 256062556
Price: 3300 RON
Availability: inStock

Cost unic de transport la toate comenzile acestui vanzator

Disponibilitate:

In stoc 1 disponibil

Livrare:

Curier cu Garantia de Livrare - 18,00 Lei Detalii
Ridicare de la locker - 13,09 Lei

Estimat livrare:

Luni, 26 Mai.

Cantitate:

Pret:

3.300,⁰⁰ Lei

Primesti 3300 puncte in aplicatie

Produs:

Nou, Certificat de garanție 6 luni

Politica de retur:

Acest produs poate fi returnat in 3 zile Detalii

Plata:

La predare
Ramburs
Avans
Ramburs cu Garantia de Livrare

Curierul special îți livrează produsul pe care tu îl achiți la primire. Dacă produsul nu este ca în descriere, îți recuperezi banii, inclusiv taxele de transport.

Vanzator premium

UPcloud SRL

100% pozitive (din 2479

)

Intreaba vanzatorul

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.

LAUNCH X-431 Oscilloscope O2-2 Scopebox Analizador 4 Channels Digital Scopebox Tester USB Port

X-431 Oscilloscope O2-2 Scopebox Highligts:

4 channels
Bandwidth 100MHz
Auto configuration
Save waveforms with one click
Cursor measurement
One-click preset waveform parameter settings
Demo mode
Online help
Waveform math operations
23 automatic measurements
LAUNCH X-431 Oscilloscope works for x431 PRO ELITE,X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 PAD V, X431 PAD VII Elite, X431 IMMO Elite, X431 IMMO PLUS etc.

Features:

One key enable function
Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.
Buffer memory up to 50M.
Use the zoom in/out feature to review precise details
Customizable personal system settings that can be saved as configuration files for viewing
Self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.
Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.
Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.
Multi language user interface.
USB Sync Data Transfer to external devices such as laptop, tablet, etc....

Functions:

Supports multiple vehicle preset project tests

Supports a variety of automotive preset project tests, such as circuits, sensors, actuators, ignition tests, communication tests and combination tests, and presets various parameters and specific connection methods for each test.

23 automatic measurement settings

23 automatic measurement settings are displayed on one screen, which is clear at a glance and can be clicked with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.

Quick trigger source switching

Supports edge, pulse and other triggers. Simple and intuitive trigger settings and fast trigger source switching methods make the most difficult part of oscilloscope application extremely easy.

Quickly create waveform preset parameters with one click

When testing waveforms, you can save the existing settings on the current interface as waveform preset parameters with one click. When testing similar waveforms later, you can directly load the preset parameters without repeated settings.

Quickly save waveforms with one click

Quickly save the waveform currently displayed on the screen with one click and automatically save it in the specified format. It can be directly used as a reference channel waveform for display later.

Convenient cursor operation

Turn on the horizontal and vertical cursors with one click respectively. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.

Support cursor/phase ruler changes accordingly

When the waveform is zoomed in/out, the cursor and phase scale can change accordingly, keeping the measurement range unchanged.

Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally

Drag horizontally or vertically with 2 points to zoom in or out the waveform horizontally or vertically.

Support demonstration function

Preset sine waveforms to demonstrate common functions without connecting an oscilloscope.

Supports waveform math operations

Supports addition, subtraction, multiplication and division calculations of two channel waveforms, in addition to fast Fourier transform.

Comparison Between Launch O2-2 Scopebox and Launch O2-1 Scopebox

Model	O2-1	O2-2
Channel	4	4
Bandwith	100MHz	100MHz
Rise Time	≤3.5ns(typical)	≤3.5ns
Maximum sampling rate	1Gbps(for four channels)	1Gbps
Input resistance	1MΩ±1.5%	1MΩ±1.5%
Storage depth	50M	10M
Number of sampling bits	8bit	8bit
vertical accuracy	3%	3%
Vertical gear	5mV~10V	5mV~10V
Inverting	Support	Support
Channel coupled	DC, AC	DC, AC
Time base gear	5ns~1ks	1ns-1ks
Time base accuracy	20ppm	20ppm
Sampling mode	Normal	Normal
CANBus decoding	CAN, LIN	CAN, LIN
Trigger type	Edge, Pulse width	Edge, Pulse width
Trigger mode	Normal, Auto and Single SEQ	Normal, Auto and Single SEQ
Trigger coupling	DC, Noise rejection	DC, Noise rejection
Math	Double waveFFT	Double waveFFT
Display	YT、Zoom、Roll	YT、Zoom、Roll
Roll mode	200ms/div~1000s/div	200ms/div~1000s/div
Auto configuration	Support	Support
Auto measurement	23	23
Cursor	Horizontal cursor, Vertical cursor	Horizontal cursor, Vertical cursor
Powered by	USB port, DC IN port	USB port, DC IN port
Data transmission method	USB	USB
Vehicle configuration options	Circuits, sensor, actuators, ignition	Circuits, sensor, actuators, ignition
Operating temperature	0℃~50℃	0℃~50℃
Power supply range	USB:5V/1A DC:12V/24V	USB:5V/1A DC:12V/24V
Compatibility	Different tablet resolutions require different APPs	One APP can be compatible with multiple tablet resolutions
Multi-touch gestures	No	Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally
Vehicle configuration	No	Each test project can support online help documentation (help documentation will be compiled according to needs later)
Firmware upgrade	Manual upgrade	Support online upgrade
Trigger	Waveform observation cannot be expanded during normal trigger waiting.	Can be used normally during normal trigger waiting.
Demo function	No	Yes
Split-screen	No	Yes
Sampling rate	Single channel 1G/s, more than 2 channels only 250M/s	Single channel 1G/s, 2 channels 500M/s, multiple channels 250M/s
Start time	2-3S	about 16s
Power consumption	about 6W	about 7.5W

How to Connect the cables?

Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).

Note: * PADVII series tablets support USB power supply.

2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

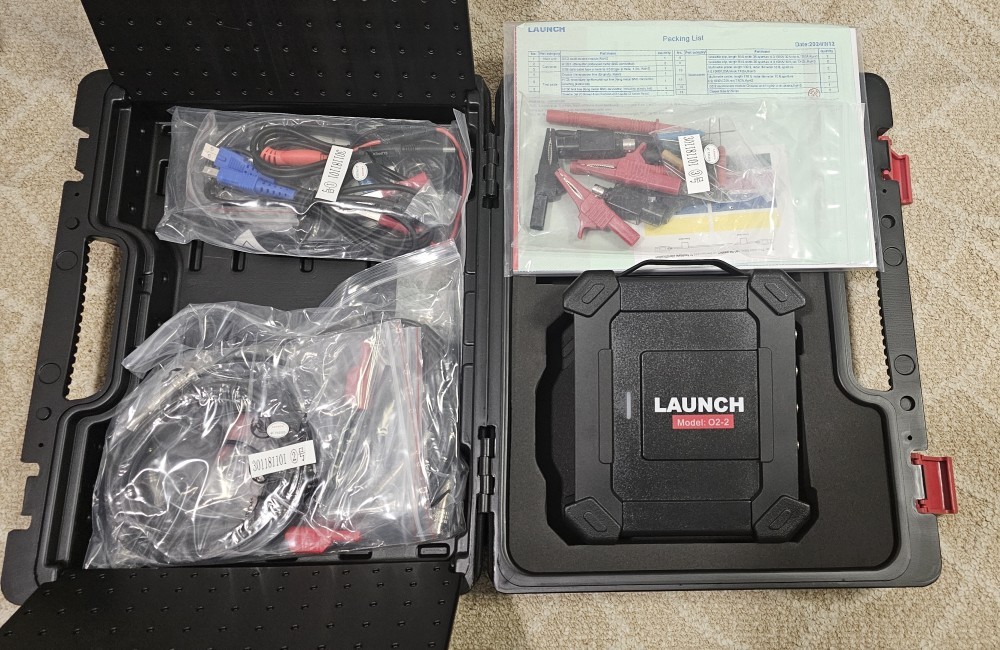

Package Includes:

1pc x Launch O2-2 main unit
4pcs x HT 30 test lines
1pc x HT25 secondary ignition pick-up line
1pc x battery clip cable
1pc x USB cable
2pcs x HT201 attenuator
20pcs x piercing needles
2 pairs x multimeter probes
2 pairs x crocodile clips
5pcs x colored 4 female probes
4pcs x clipper fuses(5*20mm)
2pcs x screw head
1pc x user manual
1pc x color label
1pc x packing list
