Tester injectoare electromagnetic CR-C diesel common rail Bosch, Delphi, Denso

kindly note CR-C common rail injector tester is only for electromagnetic injector

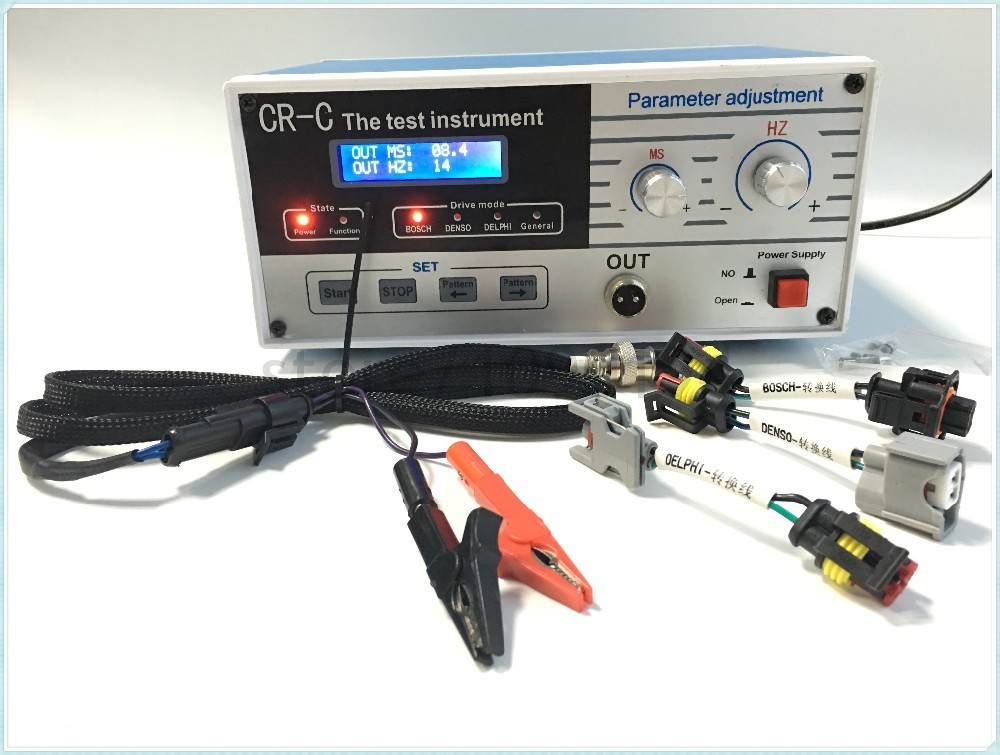

Produce Model:    CR-C Common Rail Injector Tester

Testing Range:   atomization, pilot, emission and full load condition.

Test Injectors:    for bos-ch, for Den-so, and for Del-phi common rail injectors.

Power Supply:   AC220V

Working Temperature:    -30C°-70C°

Size:    110*250*190mm

Adjustable Width:  10 MS

HOW to Test

    As we know driver common rail injector,not only need  a tester but also need hight pressure fuel,

so we used a manul fuel pressure pump  S60H as  show in follow picture

1, the high pressure oil common rail injector directly or into the holder is connected to the common hand pressure calibrator.

2, according to the corresponding plug injector brand choice, will harness and injector connected up correctly.

3, according to the fuel injector brand, drive mode selecting corresponding, at this time can hear the injector solenoid valve suction armature "Pa, Pa" voice.

4, by constantly under pressure calibrator lever, provide the suitable injection pressure, the general pressure value takes 30-40MPA best, at this time can be observed on the fuel injector atomization performance.

5, through the external cylinder, can be detected on the injector fuel injection quantity and oil return.

test for BOS-CH  injector ,used the connecttion for bos-ch
