ZK-4KX sursa automata de tensiune, DC-DC, 0.5-30V, 4A, CC-CV

Produsul este nou!

Specificații:

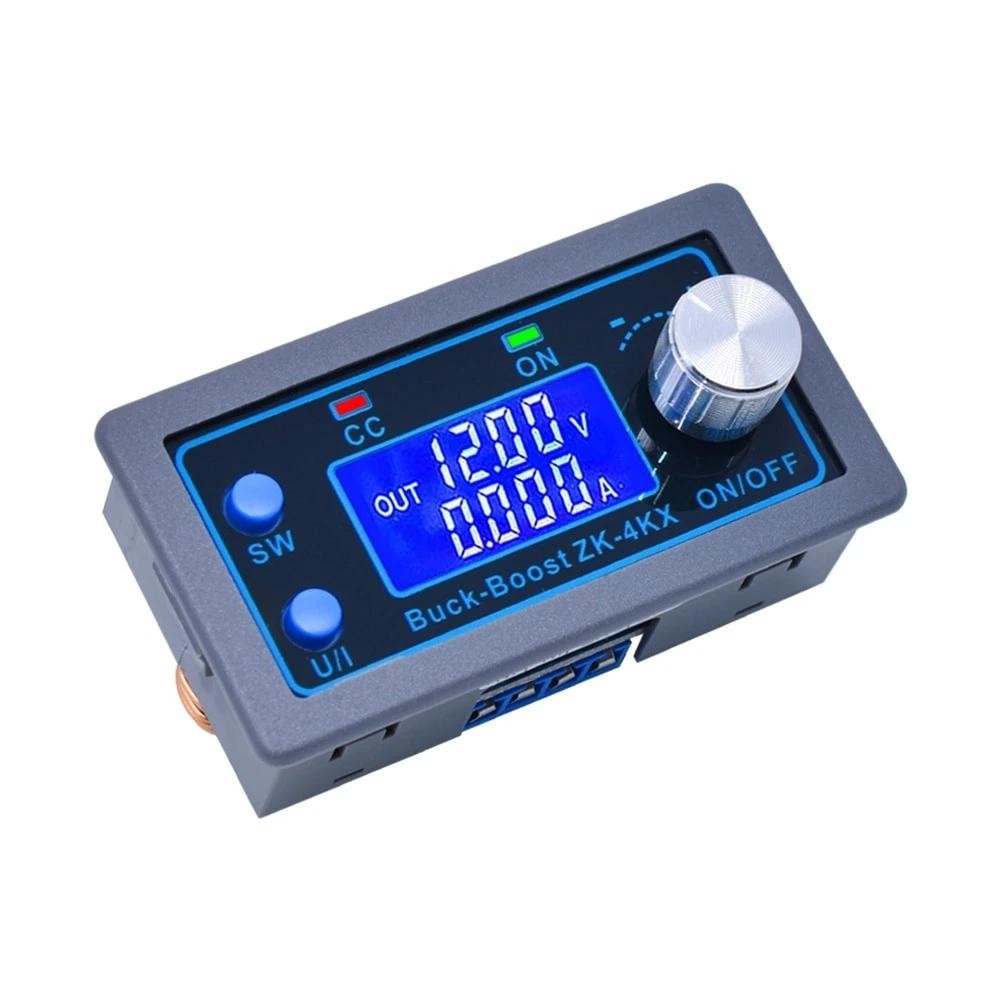

Modul sursa coboratoare-ridicatoare de tensiune, DC-DC, de la 5-30VDC la 0.5-30VDC, cu o putere maxima de 35W cu racire naturala sau pana la 50W cu racire activa.

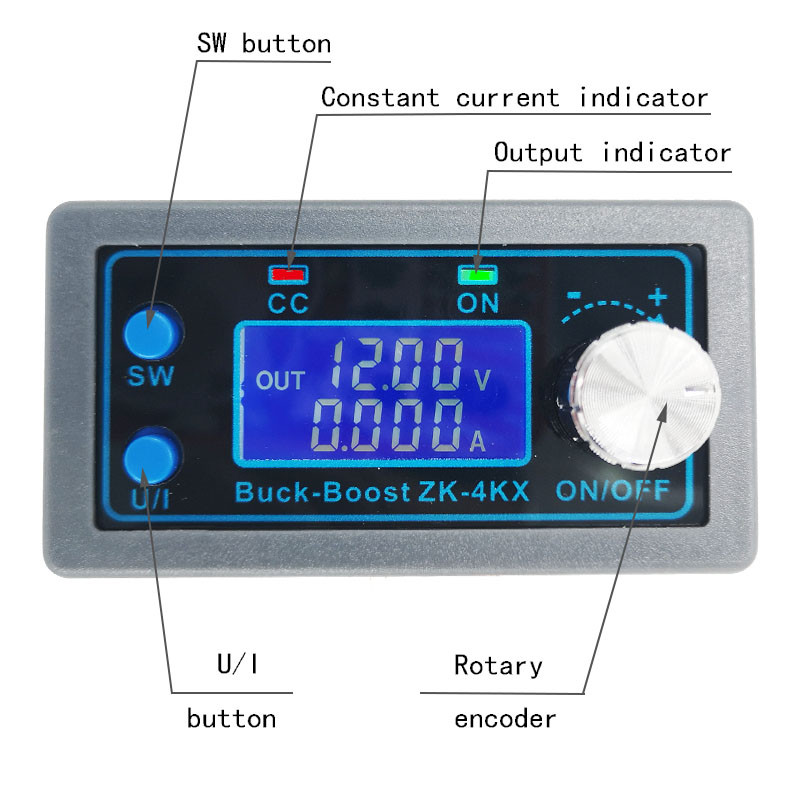

Dispune de ecran LCD retroiluminat cu caractere albe pe fundal albastru, selector cu encoder pentru o setare precisa a parametrilor de functionare si o mare varietate de functii ce il pot face util atat in sisteme fotovoltaice de mica putere cat si pentru realizarea unei surse DC-DC.

Modulul pastreaza tensiunea de iesire la variatiile tensiunii de intrare si are functie de "Soft Start".

In cazul in care valorile afisate sunt deplasate, acestea pot fi calibrate din meniul modulului.

Calibrarea se poate face doar la o tensiune peste 12VDC.

Important:

A nu se pune in scurt IN cu OUT.

Amperajul maxim poate fi atins doar peste 8V. La 5V modulul este limitat la 15W.

Nu se recomanda folosire peste 35W si 3A.

Tesiune alimentare: 5 - 30VDC

Tensiune iesire: 0.5 - 30VDC, continuu reglabila

Curent iesire: 4A Maxim cu racire activa, 3A cu racire naturala, continuu reglabila

Rezolutie reglaj tensiune: 0.01V

Rezolutie reglaj curent: 0.001A

Eficienta conversie: 88% aproximativ

Frecventa operare: 180KHz

Dimensiuni mm: 79 x 43 x 26mm

Dimensiuni montaj: 71 x 39mm

Functii:

- Filtru PI si unda iesire mica

- Protectie polaritate inversa intrare

- Irigare anti-revers pe iesire (Anti-reverse Irrigation), ce elimina necesitatea unei diode montata pe iesire atunci cand se foloseste la incarcarea unui acumulator.

- Setare mod functionare default Open-Close

- Functii de protectie setabile in functie de necesitati

- Protectie tensiune intrare scazuta setabila intre 4.8-30VDC

- Protectie tensiune iesire marita setabila intre 0.5-31VDC

- Protectie supracurent iesire setabil intre 0-4.1A

- Protectie iesire putere setabila intre 0-50W

- Protectie temperatura setabila intre 80-110 grade C

- Protectie Timeout timp setabil intre 0-100 ore

- Protectie capacitate setabila intre 0-60Ah

Instructiuni (engleza):

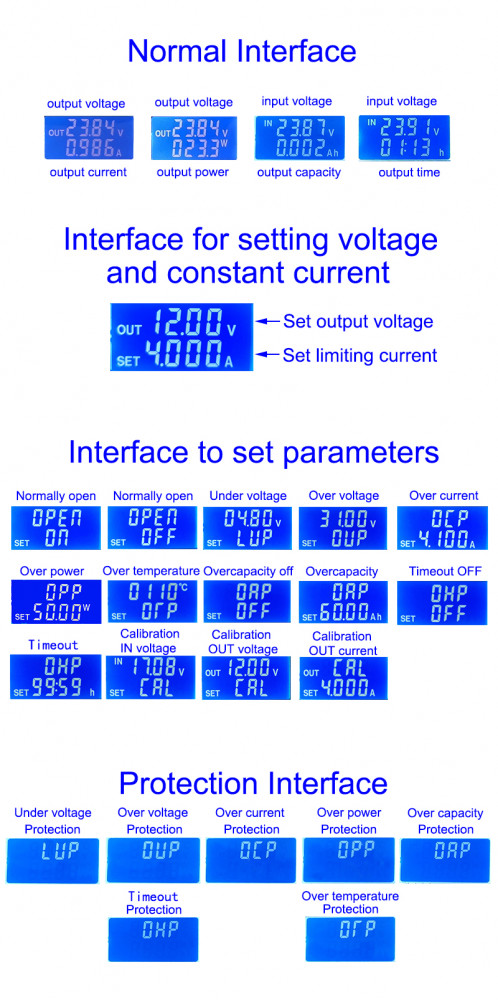

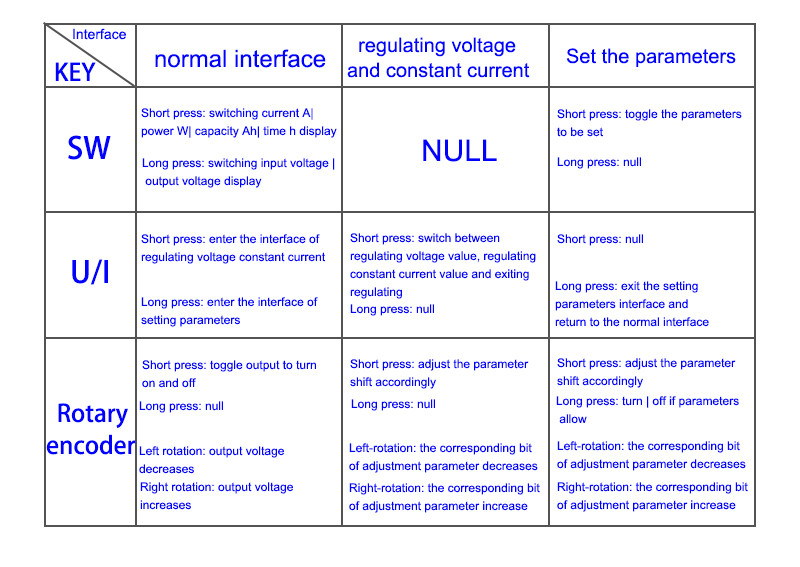

5.1. Switch display parameters -- in the normal interface, press SW to switch the display below the display screen, and switch the display content between current A power W capacity Ah time h.Long press SW button to switch the uplink display on the display screen and switch the display content between input voltage IN output voltage OUT.

5.2. Set output voltage -- press U/I button in the normal interface to enter the interface of setting voltage constant current.

It can be seen that a certain digit of the output voltage value is flashing.

Rotate the encoder left and right to adjust the major and minor.

Short press the rotary encoder to choose which bit of output voltage to set.

After setting, press U/I button 2 times to return to the normal interface.

Or automatically return to the normal interface after stopping operation for 10s.

5.3. Set constant current value (that is, the maximum current value allowed to output by the module) -- press U/I button in the normal interface to enter the setting voltage constant current interface.

Then press U/I button and switch to setting constant current value. You can see a bit of the setting constant current value flashing.

Rotate the rotary encoder left and right to adjust the major and minor.Short press the rotary encoder to choose which bit to set the constant current value.After setting, press U/I to exit the setting voltage constant current interface and return to the normal interface.Or automatically return to the normal interface after stopping operation for 10s.

5.4. Set the default on/off state of module power-on -- long press U/I in the normal interface to enter the parameter setting interface.You can see that it shows "OPEN OFF" or "OPEN ON". "OPEN OFF" means the output is turned OFF by default when power is ON, and "OPEN ON" means the output is turned ON by default when power is ON.Long press rotate encoder to switch two states.After setting, long press U/I to return to the normal interface.

5.5. Setting of protection parameters on state and threshold -- long press U/I to enter the parameter setting interface in the normal interface.Press SW until the protection you want appears.LUP -- undervoltage protection threshold;OUP -- overvoltage protection threshold;OCP -- overcurrent protection threshold;OPP -- over power protection threshold;OAP -- ultra-capacity protection threshold;OHP timeout protection threshold;OTP -- overtemperature protection threshold.Short press rotate encoder to select which bit you want to set the protection parameter.Long press the rotary encoder to set the protection parameters on or off (only timeout protection and supercapacity protection can be set to turn on/off, and other protection parameters are turned on by default.).Rotate the encoder left and right to make the parameters bigger and smaller.After setting, long press U/I to return to the normal interface.

5.6. Calibration voltage and current -- press U/I button to enter the parameter setting interface under normal interface.Press SW until a parameter interface with CAL appears.The calibration input voltage interface with the symbol CAL+IN+V;The calibration output voltage interface with the symbol CAL+OUT+V;The calibration output current interface with the symbol CAL+OUT+A.Rotate the encoder left and right to adjust the size of parameters.After the adjustment is completed, long press the rotary encoder to confirm the adjustment is completed, and the parameter value is no longer flashing.Long press U/I to return to the normal interface.

Note: in order to ensure the accuracy of calibration, calibration voltage -- above 12V can only be started;Calibration current - start calibration only when the current is above 1A.
