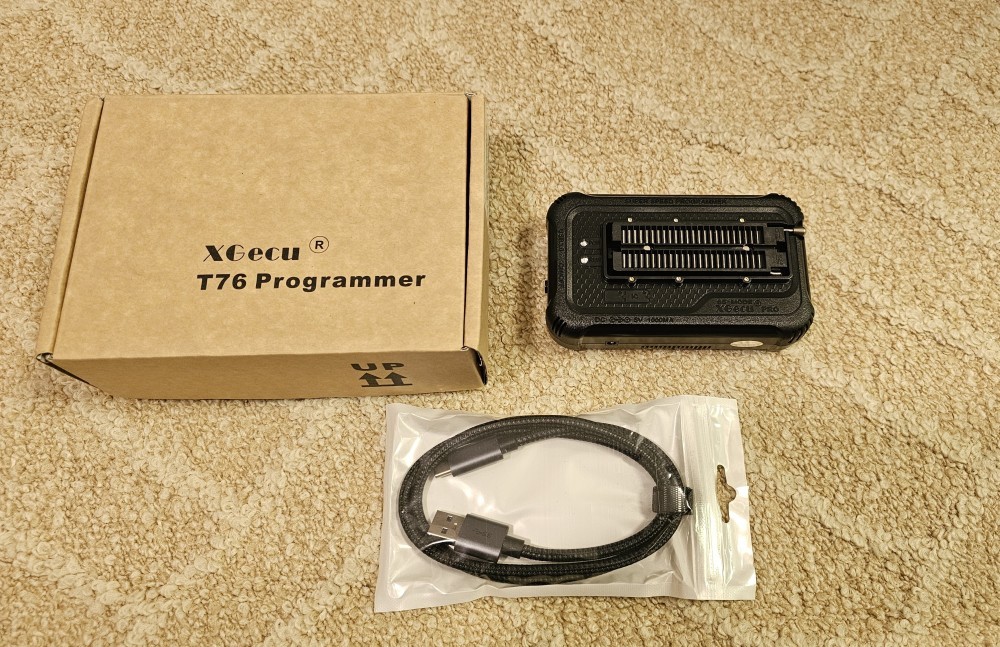

Programator memorii XGECU T76 EEPROM NOR NAND EMMC MCU GAL

T76 Hardware Parameters
●Master:32-bit RISC-V MCU + FPGA (BGA256)
[TYEP C] USB3.0 SS 5GHZ Compatible USB2.0 480MHZ
●Exterior Dimension: 12x7x2.8cm
High-cost and high-density process, product size is greatly reduced.
● 48-pin full drive 10+ISP 28-way dedicated I0.
A total of 76-way external high-speed driver, high reliability
●VCC voltage 1.2-6.5V 64-level adjustable, the
VPP voltage 6.5-25V 64-level adjustable. Supports programming up to 25V
I0 communication signal voltage 1.2V-3.6V adjustable in 64 steps.
VCC 120MA-450MA overcurrent protection adjustable
VPP 150MA overcurrent protection
Power consumption: 5V <1A. Static power consumption: 150mA.
All chips do not need external power supply. For one to four mass production programming can be connected to an external power supply 5V-5.5V.
External power supply current n*1A or more, the programmer has multiple protection for external power supply.
Over-voltage protection / reverse connection protection / over-current protection / low voltage tips.
T76 chip support
●26 27 28 29 37 39 49 50 Series Parallel ROM, EPROM, EEPROM
●24 25 35 45 85 93 95 Serial series EEPROM.
●Support P-NAND FLASH: NAND New model chips can be added with customized parameters.
●Support SPI NAND, (SD NAND/SD Card)
●Support EMMC/EMCP
● Microcontroller series
●GAL/CPLD Programmable Logic Device Programming
● Support VGA tool and VGA ISP programming
●SRAM chip test
●Powerful 54/74F/LS/HC CMOS4000 series IC logic test.
Can test common logic ICs, test can be localized to the logic gate circuit, can be customized logic vector table, add chip support.
T76 will support all T48/T56 chips.
Note: The initial version of the software, the blue font function has not been added to complete, in the subsequent
It will be completed in the following software upgrade, and the time to complete all the functions is estimated to be 2-3 months.
2024.12. 11
