Programator Xgecu T48 TL866-3G SPI/Nor Nand Flash/EMMC BGA Tsop SOP PLCC

Description

Universal programmer for EEPROM, Flash (NAND and NOR), eMMC and MCU memories. The device is controlled from a Windows computer using a dedicated application, and communication is via USB 2.0 interface. The programmer is equipped with a ZIF-40 socket and a 16-pin ISP connector, and with the use of additional adapters can program chips in various types of enclosures, including DIP, PLCC, SOP, QFP, TSOP or BGA and various voltage levels from 1.2 V to 6.5 V (VCC) and from 6.5 to 25 V (VPP). The wide range of supported chips (full list of supported devices) makes the XGecu T48 suitable for both professional and hobbyist applications.

Features

• Communication interface: USB 2.0
• 32-bit MCU 120 MHz microcontroller
• Supported chip types: serial EEPROM, parallel EEPROM and Flash, FLASH type NOR, NAND, SPI NAND, EMMC, NVRAM, CPLD (more than 30,000 chips)
• Support for circuits in enclosures: DIP, PLCC, SOP, QFP, TSOP or BGA (may require additional adapter)
• ZIF-40 socket
• 16-pin ISP connector
• Self-test mode
• Pin contact check
• Supported voltage levels from 1.2 V to 6.5 V (VCC) and 6.5 to 25 V (VPP) with 64 levels
• Power supply: USB
• Current consumption up to 500 mA
• Reverse polarity, overload, overvoltage protection
• Software for Windows 2000, XP, 2003, 2008, Vista, 7, 10
• Dimensions: 100 x 65 x 28 mm

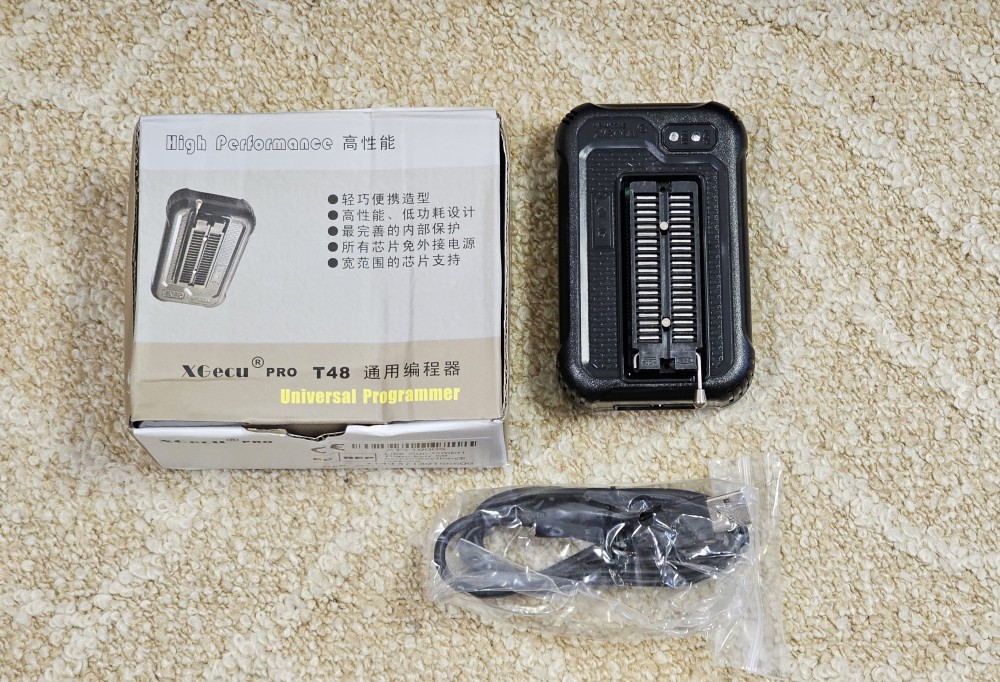

Kit contains

• XGecu T48 programmer
• USB cable
