Sonda originala osciloscop Hantek PP-80 sau PP-150 + accesorii
Cost unic de transport la toate comenzile acestui vanzator
Disponibilitate:
In stoc
4 disponibile
Produs:
Nou, Certificat de garanție 6 luni
Politica de retur:
Acest produs poate fi returnat in 14 zile
Detalii
Plata:
- La predare
- Ramburs
- Avans
Vandut de:
100% pozitive
(din 2479
)
)
Descriere
Raporteaza produsVânzatorul este direct răspunzator pentru produsul afișat în această pagină.
Specificatii
Sonda PP-150 costa cu 20 lei mai mult fata de modelul PP-80 la care este postat pretul in acest anunt.
Probe (PP80, PP150)
Product introduction：
Integral
injection molding makes the usage more flexible and the
oscilloscope able to adapt more testing situations. Attenuation
ratio: 1x and 10x optional. Compatible with domestic and
international digital and analog oscilloscopes in relevant
frequency.
Oscilloscope
Rapier
Performance & Characteristics
● Attenuation ratio: 1× and 10× optional.
● Portable design according with ergonomics.
● Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
● Safety standards: it has passed the CE Attestation of European Community.
Application Fields
● Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
● Measurement in intermediate and low frequency signals.
Order Information

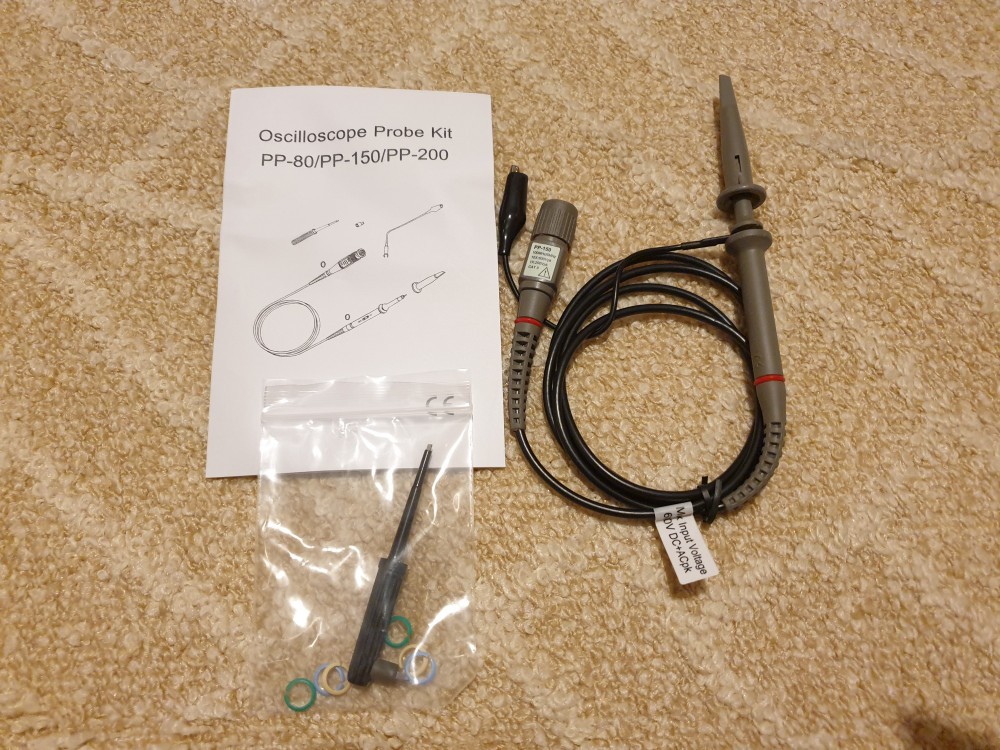

Accessories included by PP series passive voltage rapier
● Operation manual
● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
● Contractive-type acuminate hook
● 12cm earth wire with alligator clip
● 4 pairs of colorized cable markers
● Locating sleeve adapts to IC testing.
Performance & Characteristics
● Attenuation ratio: 1× and 10× optional.
● Portable design according with ergonomics.
● Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations.
● Safety standards: it has passed the CE Attestation of European Community.
Application Fields
● Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
● Measurement in intermediate and low frequency signals.
Order Information
Accessories included by PP series passive voltage rapier
● Operation manual
● Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
● Contractive-type acuminate hook
● 12cm earth wire with alligator clip
● 4 pairs of colorized cable markers
● Locating sleeve adapts to IC testing.
Specification Details:
- Item PP-80
- Attenuation x1 x10
- Input resistance 1MΩ: 10MΩ
- Input capacitance x1: 85pF-115pF
- x10:18.5pF-22.5pF x1: 85pF-115pF
- x10: 18.5pF-22.5pF
- Compensation scope 20pF-40pF 15pF-40pF 15pF-35pF
- System bandwidth x1:DC-4MHz;
- x10: DC-60MHz x1:DC-6MHz;
- x10: DC-80MHz x1: DC-5MHz
- x10: DC-100MHz x1: DC-8MHz
- x10: DC-200MHz
- Input voltage x1:<200V DC +Peak AC
- x10: <600V DC +Peak AC
- Product weight: 55g
- Cable length: 120cm
- Temperature scope: Operation: -10oC--+50oC
- Not Operation: -20--+75oC
- Humidity ≤85% (Relative humidity)
