Osciloscop auto Digital Hantek 1008c 8 canale 2.4MSa/s Automotive - Model 2018

Model nou 2018 Osciloscop Hantek 1008c 8 canale !

Aparatul este dedicat pentru utilizare in domeniul auto
osciloscop cu 8 canale, 2.4MSa/s real time.

*12 biti rezolutie verticala, functie analiza spectrum
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus
Senzori : debitmetru , axa cu came, arbore cotit, distribuitor , senzor lambda , clapeta acceleratie

Mai mult de 20 de tipuri de testare automata , are interfata similara cu osciloscopul benchtop, usor de folosit

Model: Hantek1008C
Vertical
Analog Channel: 8
Input Impedance: Resistance: 1M
Input Sensitivity: 10mV/div to 5V/div
Input Coupling: DC
Resolution: 12 bits
Horizontal
Memory Depth: 4K
Max. Input: 400V (DC+AC Peak)
Real-Time Sampling Rate: 2.4MSa/s
Time Base Range: 1ns/div to 20000s/div(1-2-5 sequences)
Time Base Precision: ¡ 50ppm

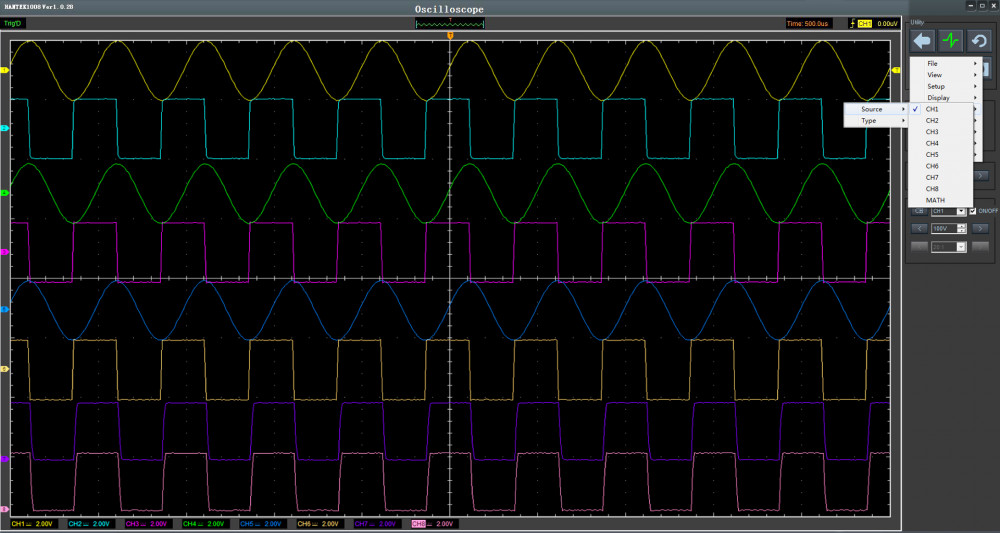

Trigger
Source: CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Mode: Edge
X-Y Mode
X-Axis Input: CH1
Y-Axis Input: CH2
Cursors and Measurement
Voltage Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process: +,- , x,¡, FFT, Invert
Voltage Range:
10mV to 5V/div at x 1 probe
100mV to 50V/div at x 10 probe
10V to 5000V/div at x 1000 probe
100V to 50000V/div at x 10000 probe
200mV to 100V/div at 20:1
Current Range :
100mA to 50.0A/div at CC65(20A)
1000mA to 500.0A/div at CC65(65A)
1A to 100.0A/div at CC650(60A)
10A to 1000.0A/div at CC650(650A)
1A to 200.0A/div at CC1100(100A)
10A to 2000.0A/div at CC1100(1100A)
Cursor: Time/frequency difference, voltage difference
FFT: Rectangular, Hanning, Hamming, Blackman Window
Math: Addition, subtraction, multiplication, division
Note:
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7

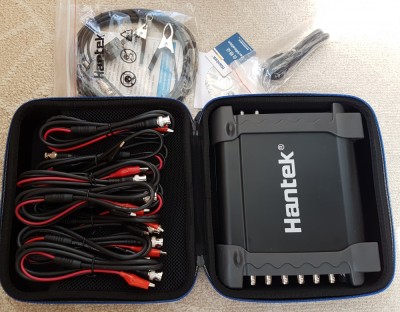

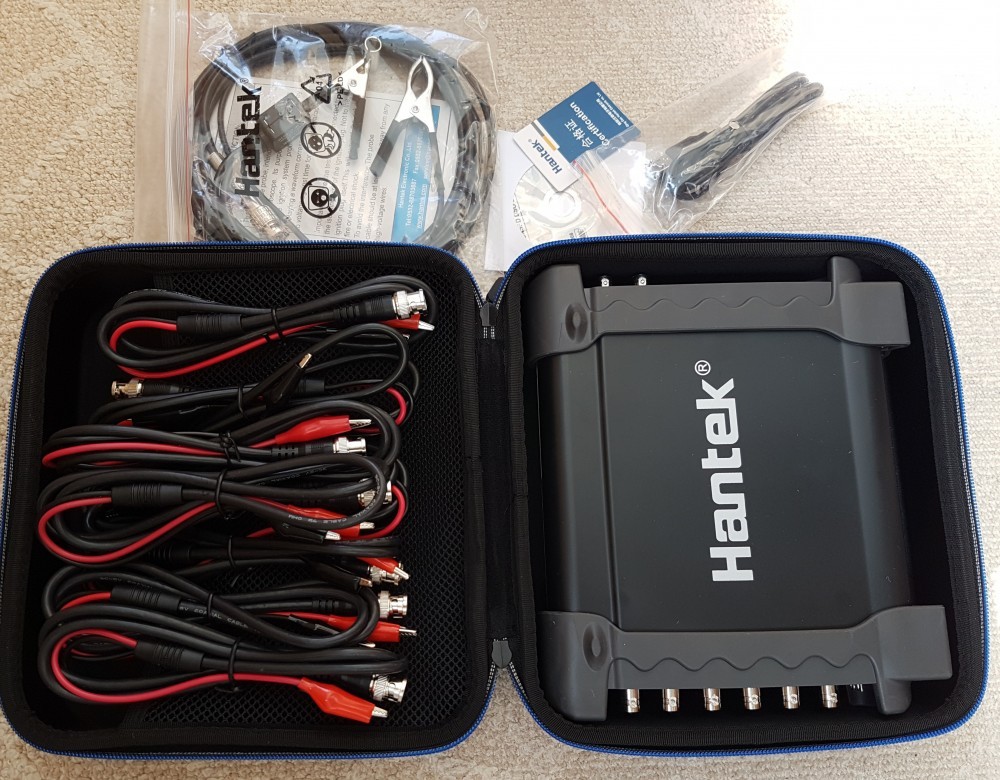

Pachetul contine:

1 x 1008C DAQ oscilloscope
1 x Auto-probe
4 x Crocodile proba/cablu
4 x conector BNC
1 x cablu USB
1 x CD (driver etc.) 1 x Auto-probe instruction

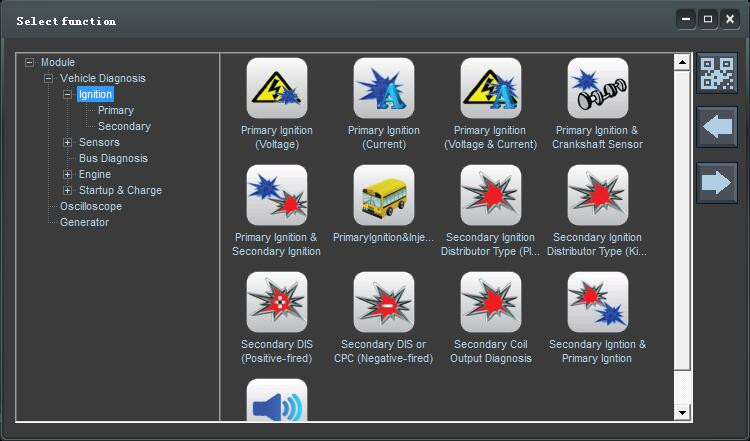

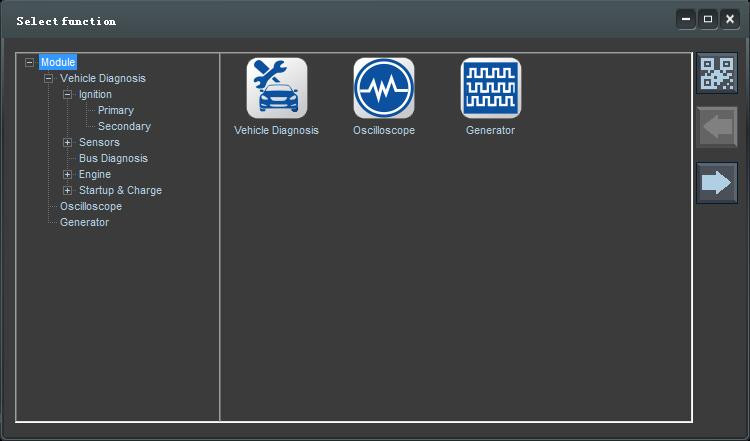

Function Selection

     There are three functions of vehicle diagnosis, oscilloscope and signal generator, including 78 types of vehicle diagnosis function.

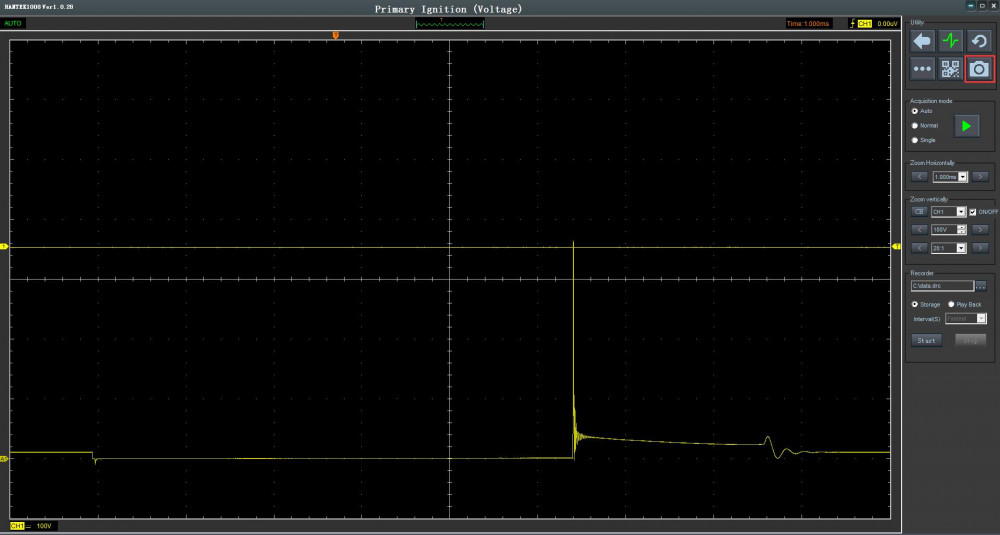

One Button Screenshot

     Save the current waveform and generate pictures. Storage location is optional and easy to find.

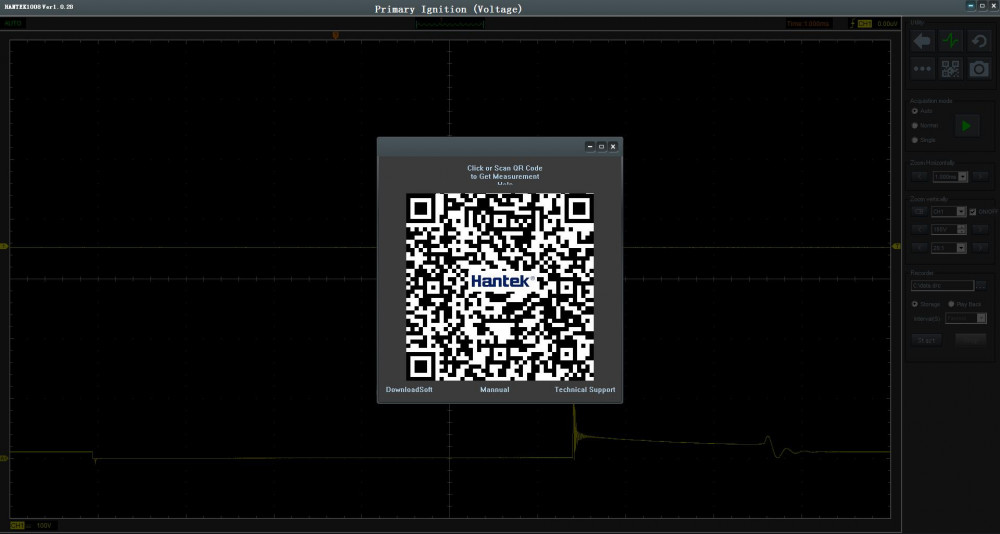

Quick Guide

     Callout the quick guide column with one button. There are special vedio guide for each vehicle diagnosis function, including wiring method, adjustment method, reference waveform etc. And it is supported to be checked through scanning the QR code.

Reference Waveform

     Over 80 types of  of standard reference waveform inside and can be callout or close with one button. It is convenient to be compared.

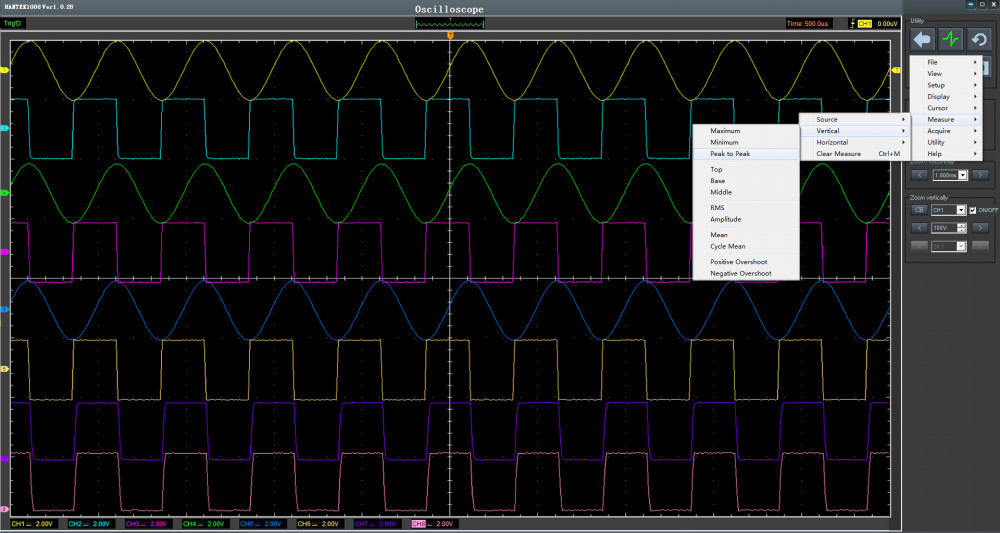

Measurement Method

     20 types of automatic measurement method which can be callout or close with one button. It is convenient and visual to read out the result.

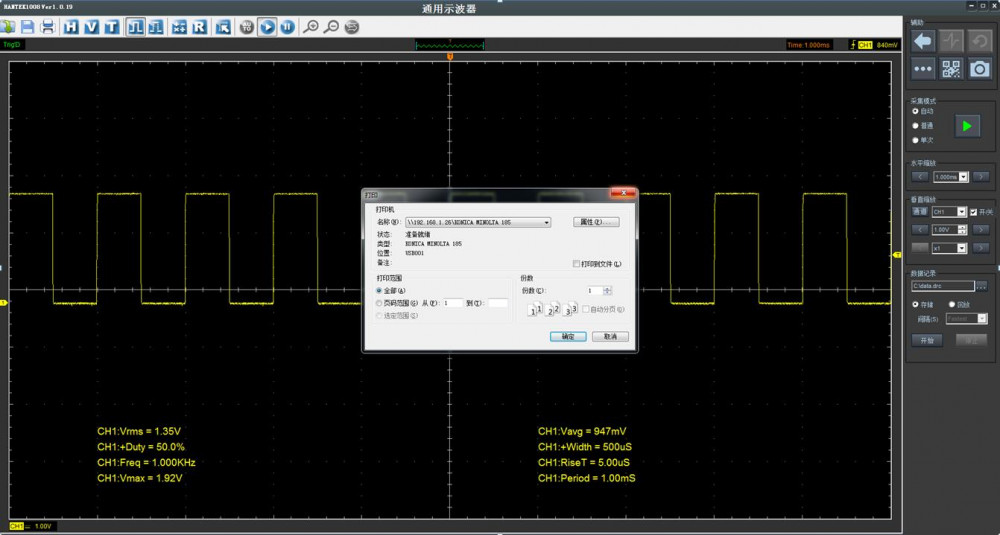

Print

     The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded.

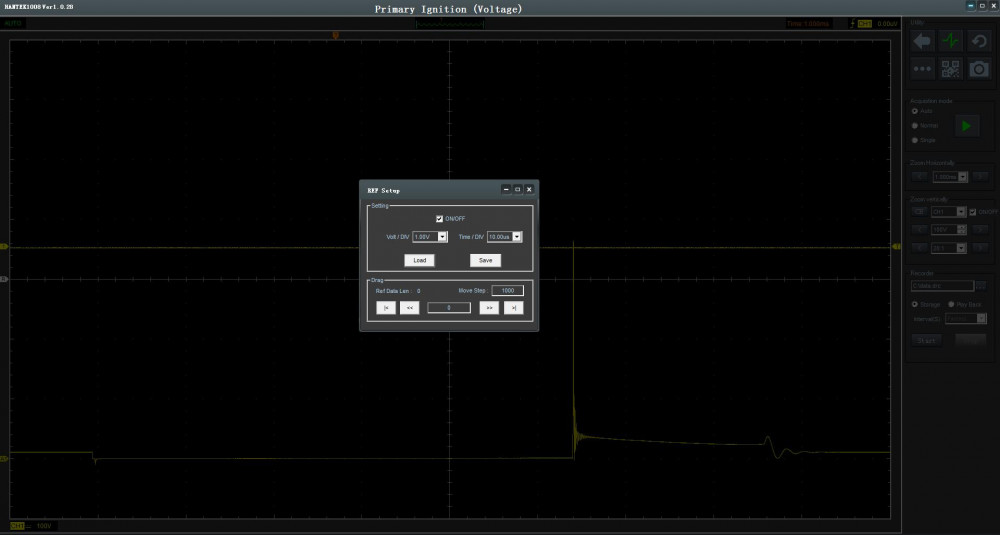

REF Comparison Waveform

     The user can save the waveform as REF format and callout it again when you need to compare the two waveforms catched in different time.

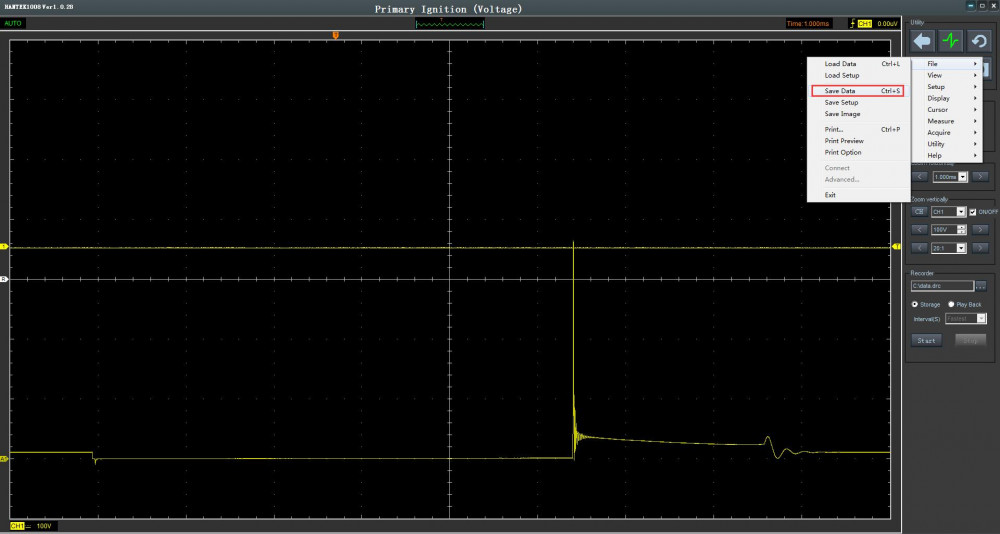

Data Storage

     The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later.

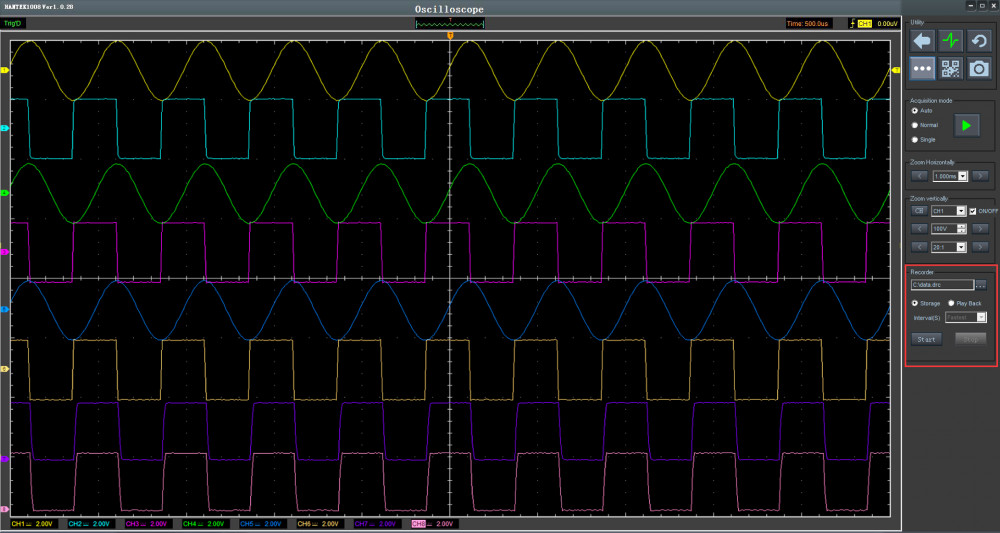

8CH Vehicle Diagnosis

     8CH signal can be measured simultaneously. The measurement voltage of each channel can be adjusted independently. You can choose to open or close each channel.

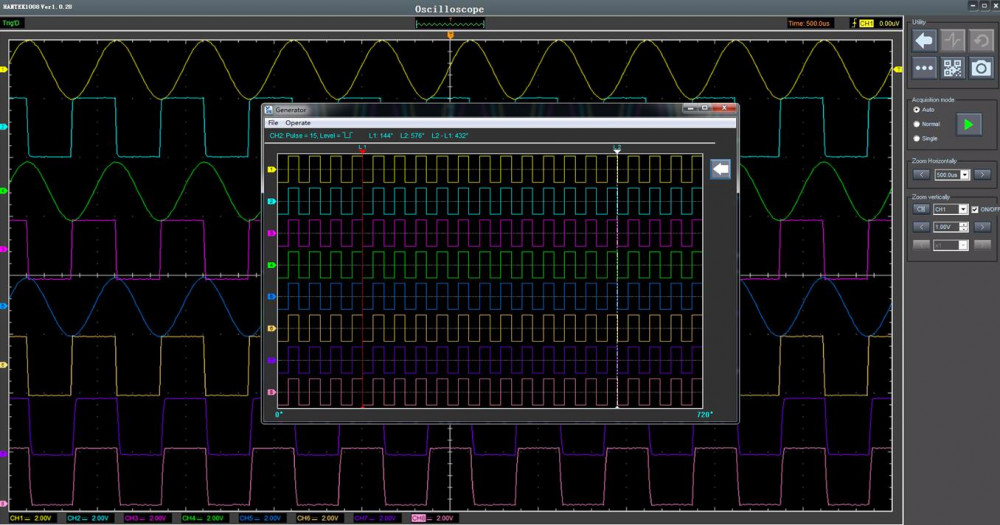

Waveform Record

     Support to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.

Multilanguage Support

     Support the display surface in Chinese, English, German language, and it can be switched freely.

Cursor Measurement

      Support 4 types of cursor measurement mode -cross,track, horizontal, and vertical.It's easy to read out the time and voltage of irregular signal.

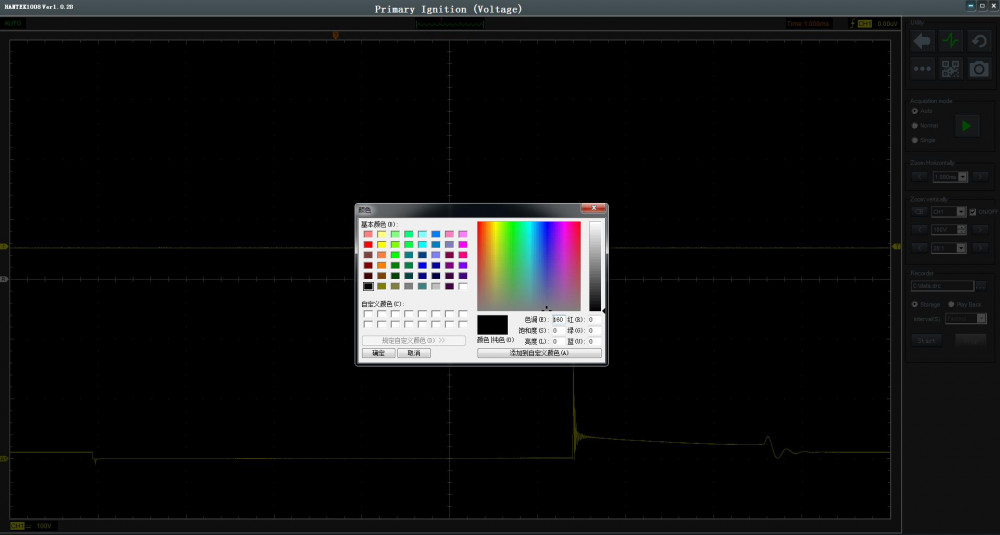

Color and Lightness

     The background color is optional as user's preference. And the lightness of waveform and gridding is settable.

Easy to Install Software

     Install the PC software and start to use without any other drivers. Support WIN XP/7/8/10.



USB Communication

     USB2.0 power supply + communication interface, plug and play, and support hot plugging.

Signal Generator

     Signal generator function, can simulate crankshaft and camshaft signal.
