Hantek DSO2D10 Osciloscop Digital 2CH+1CH , 1GS/s, 100MHz, Signal Source(AWG)

Features:

Model:DSO2D10

1), 2 channels, each channel has independent knob control;

2), Analog bandwidth 100MHZ

3), The highest sampling rate is 1 GSa/s;

4), The storage depth is 8Mpts;

5), The vertical range 2mV/div ~ 10V/div;

6), Built-in a 25MHz signal generator;

7), Vertical resolution: 8bit;

8), Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC;

9), Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN;

10), Can save settings, waveforms, reference waveforms, CSV, pictures and other data formats.

11), 3-digit digital voltmeter and 6-digit frequency meter functions;

12), Support 32 kinds of automatic measurement and statistics functions, real-time statistics of minimum, maximum, standard deviation and other statistical information;

13), Two sets of digital voltmeter functions;

14), Support threshold test to realize free measurement in the screen;

15), Rich SCPI remote control instructions;

16), Provide multiple types of peripheral interfaces: USB Host/Device.

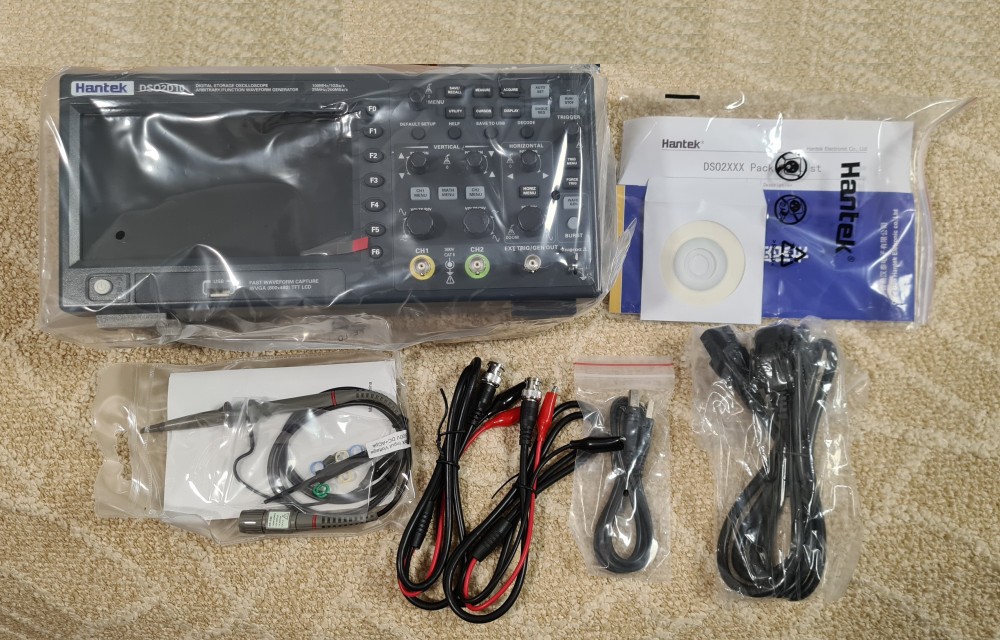

Package includes:

1 X Hantek DSO2D10 Digital Oscilloscope

1 x Probe

2 x BNC to Alligator Clip Test Cables

1 x Power Cable(EU plug)

1 x USB Cable
