Osciloscop Hantek 6022BE 2 canale 20MHz 48MSa/s 1MByte/CH

Are doua canale de cate 20 MHz si generator de semnal dreptunghiular de 20kHz pentru teste, autocalibrare si alte aplicatii.

Are port USB-XI si doua sonde cu atenuator de 10x.

Softul si driverele pentru Windows 7 si Windows 10 sunt pe pagina oficiala

Cost-effectiveness, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

1. Characteristic

Cost-effectiveness; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument.

USB2.0 interface, no external power source required, easy to use.

Be suitable for notebook computer, product line maintenance,be used easily on business.

Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

High performance, 48MS/s real-time sampling, 20MHz Bandwidth,

Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.

23 measurement functions, PASS/FAIL Check, be suitable for technical application>

Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.

Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

FFT

One computer can connect many DSO, extend channel easily.

Labview/VB/VC/ Second Design instance.

2. Hardware Specification

Channel                      2 Channels

Bandwidth                  20MHz

Input Impandence     1MΩ 25pF

Max. Sample rate     48MS/s

Vertical resolution     8Bit

Gain range                20mV-5V, 8Steps

DC accuracy            ±3%

Timebase range       1ns-9000s, 39 Steps

Vertical adjustable    Yes

Input protection       Diode clamping

X-Y                          Yes

Trigger Mode         Auto, Normal and Single

Trigger Slope         +/-

Trigger level adjustable             Yes

Trigger Type         Rising edge, falling edge

Trigger Source      CH1, CH2

Pre/Post trigger      0-100%

Sampling selection   Yes

Waveform Display    port/line, waveform average, persistence, intensity

Network                Open/Close

Vertical mode       CH1, CH2, Dual, ADD

Cursor measurement     Yes

Math FFT, addition, subtraction, multiplication, division.

Cursor Frequency,   Voltage

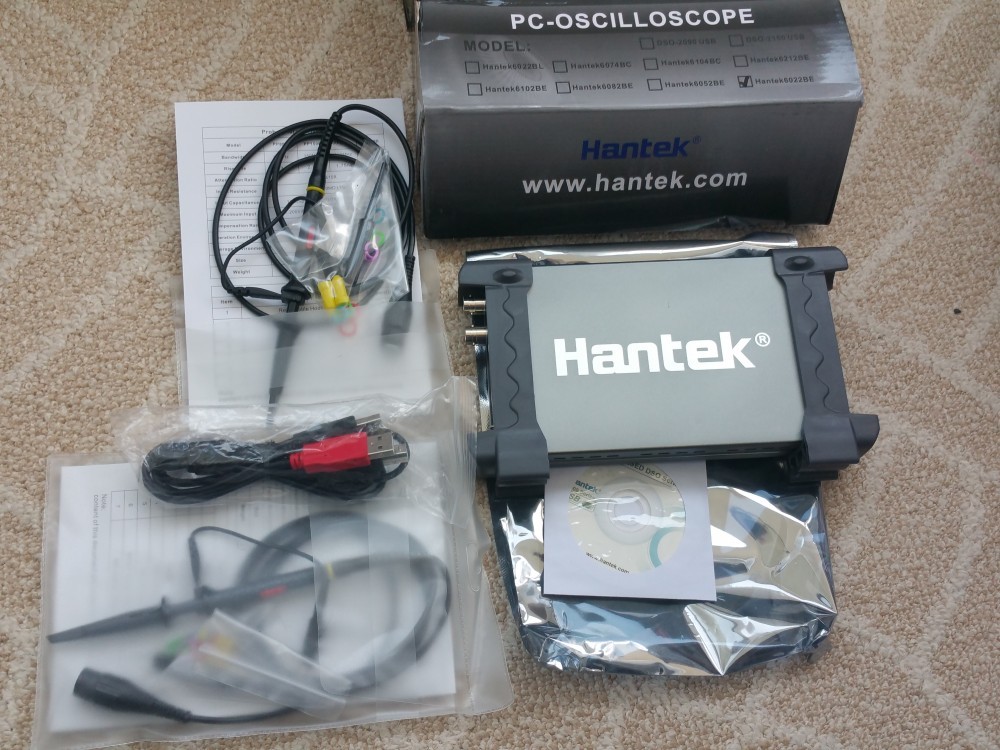

Accessories S/W CD, probes, manual, USB cord

3.Software

Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA,Windows 8

4.Second Design

Supply DEMO code(VC\VB\LABVIEW) and technical support.

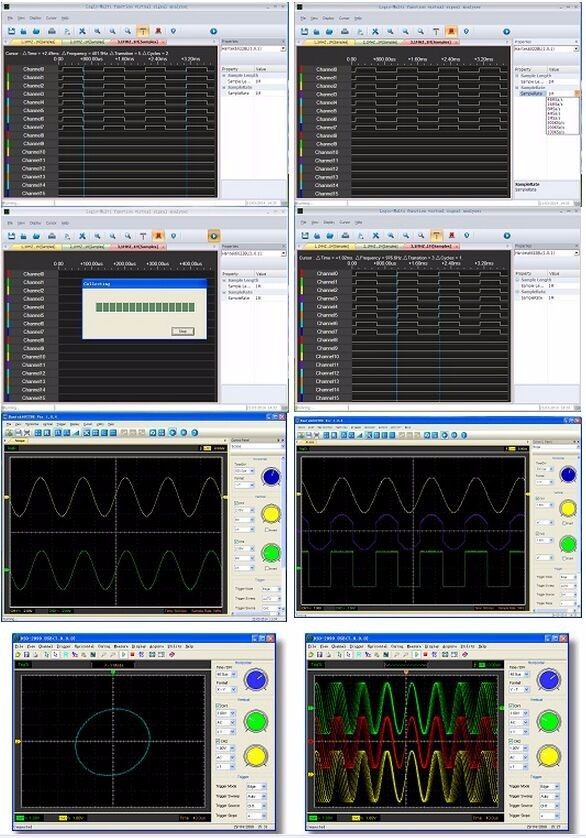

5,Display
