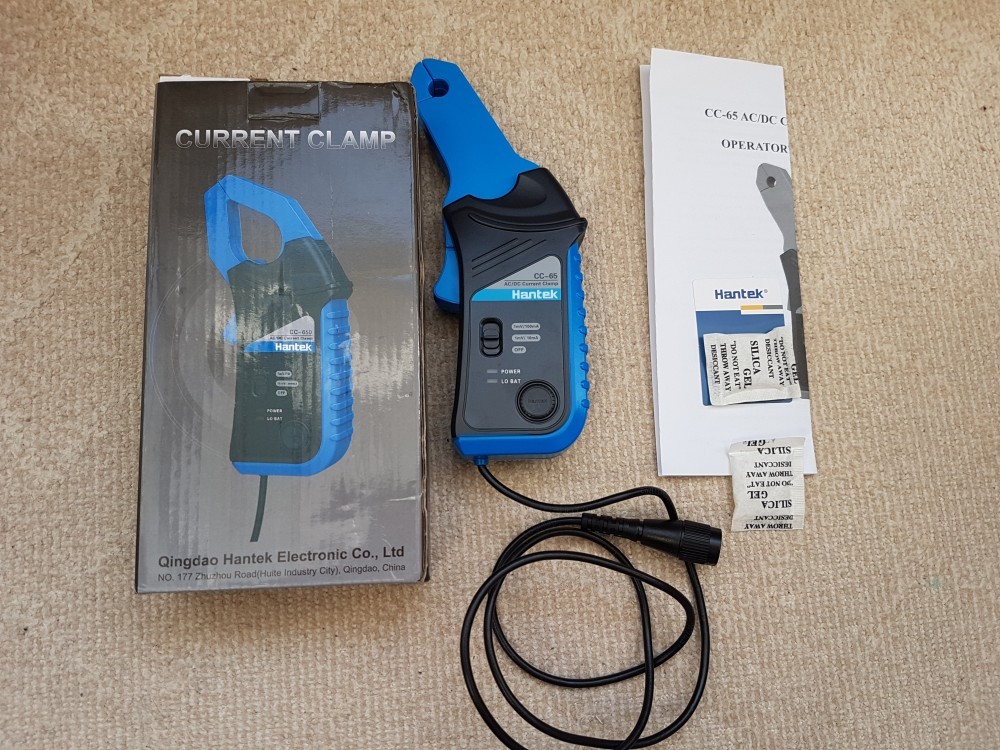

Cleste de curent osciloscop CC65 Hantek CC-65 AC/DC cu conector BNC

* * 1 părere
5 din 5
Media calculata
pentru
1 calificativ
  • 5 stele fill 1
  • 4 stele fill 0
  • 3 stele fill 0
  • 2 stele fill 0
  • 1 stele fill 0
Cost unic de transport la toate comenzile acestui vanzator
Disponibilitate:
In stoc 1 disponibil
Livrare:
  Curier rapid - 24,00 Lei Detalii
Estimat livrare:
Joi, 16 Mai.
Cantitate:
Pret:
370,00 Lei
Produs:
Nou, Certificat de garanție 6 luni
Politica de retur:
Acest produs poate fi returnat in 14 zile Detalii
Plata:
  • La predare
  • Ramburs
  • Avans

Descriere

Raporteaza produs

Vânzatorul este direct răspunzator pentru produsul afișat în această pagină.

Specificatii

AC/DC Current Clamp CC-65

AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.



AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A

Feature
AC/DC frequency range: Up to 20 kHz
Effective Measurement Range: 20mA to 65A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.
Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.



Application

Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.

DCA Range 1 mV /10mA (1.5%5mA) 10mA ~ 20A
1mV/100mA (2%20mA) 100mA ~ 40A;
(4%0.3A) 40A ~ 65A
ACA Range 1mV/10mA (2%30mA) 100mA ~ 10A (40Hz ~ 2KHz);
(4%30mA) 100mA ~ 10A (2KHz ~ 10KHz);
(6%30mA) 100mA ~ 10A (10KHz ~ 20KHz);
(8%30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA (2%30mA) 200mA ~ 40A (40Hz ~ 1KHz);
(4%30mA) 200mA ~ 40A (1KHz ~ 2KHz);
(6%30mA) 200mA ~ 40A (3KHz ~ 5KHz);
(8%0.3A) 40A ~ 65A (40Hz ~ 20KHz)
Captured Conductor Size   9mm maximum
Low Battery Indictor   red LED lighting
Operating Temperature   0to 5070% R.H.
Storage Temperature   -20 to +70, 80% R.H.
Battery Type   9V DC, NEDA 1604, 6F22,0006P
Battery Life   100 hours typical with alkaline
Weight   250 gm typical
Dimensions   195mm(H) x 70mm(W) x 33mm(D)
Output   Supplied with coil cable with straight banana plug or BNC plug.
